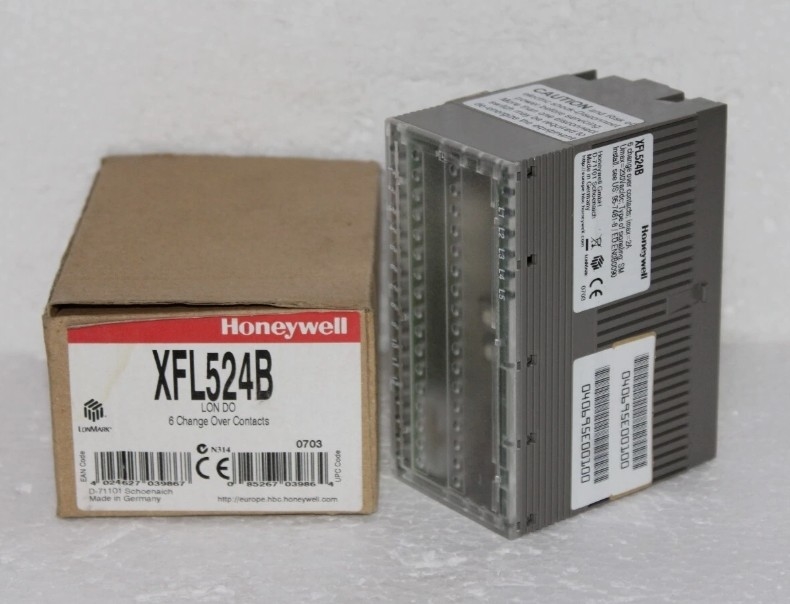

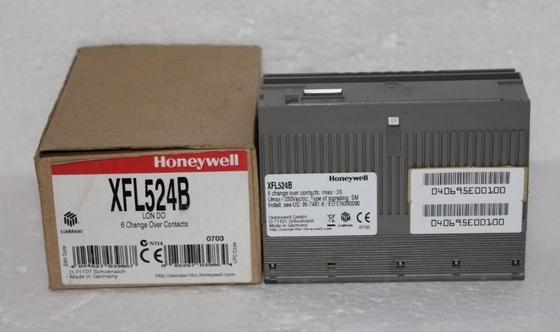

Name: Honeywell XFL524B Distributed I/O Change Over Contacts Digital Output Module
Brand: Joyoung International Trading Co.,Ltd
SKU: XFL524B
Price: 4,690.00 USD
Availability: InStock

Home Products Honeywell PLC

Honeywell XFL524B Distributed I/O Change Over Contacts Digital Output Module

Product Details:

Place of Origin:	USA
Brand Name:	Honeywell
Certification:	COC
Model Number:	XFL524B

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	inquiry
Packaging Details:	original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Contact Now

Detailed Product Description

Product Name:	Honeywell XFL524B Distributed I/O Change Over Contacts Digital Output Module	Product Model:	XFL524B
Condition:	New	Shipping:	DHL,TNT Or EMS,Fedex,UPS
Stock:	Available	Warranty:	12 Months
Rating:	24Vdc, 110mA	Packing Size:	11.8" X 7.9" X 9.9" (30 Cm X 20 Cm X 25 Cm)
Gross Weight:	3kg

Honeywell XFL524B Distributed I/O Change Over Contacts Digital Output Module

Product Details:

Brand Name	Honeywell
Model	XFL524B
Catalog	TDC2000
Origin	United States (USA)
Dimension	302520cm
Weight	3kg
HS Code	8537101190
Payment	T/T
Sales Price	$1000
Warranty	12 months
Lead time	3-5 work days

Additional Information:

APM MODEM CC	7029_Data Hiway
PWB LD I/O CC	7025_LCN Hardware
CABLE, IKBI2 PS/2 KYBD 96IN	7024_TPS Supervisory Hardware
ICON LOCAL POWER CABLE 7 PORT USB HUB	7022_Experion Supervisory Hardware
EXCH BATTERY EXTENSION MODULE	7021_Experion Controller & I/O Hardware

Description:

Beginning with Excel 500 controller firmware version 2.04.00, the online point attribute Normally Open / Normally Closed(NO/NC) defines the relation between the physical state (relay on/off) and its logical status.

The digital output module has six isolated change-over contacts which can be connected to actuators or other switchable devices.

The unit plugs into the XSL514 Terminal Block and can be inserted and removed without disturbing other units on the bus. Six LEDs are located on top of the module. The module address is set using the rotary HEX switch (in the case of applications prior to CARE 4.0).

The relays can be used to switch signals with up to 230 Vac and 2 A. All outputs from a single module must be of the same kind. It is not allowed to mix high-voltage (e.g. 230 Vac) and low-voltage (e.g.24 Vac) signals.

Honeywell XFL524B Distributed I/O Change Over Contacts Digital Output Module 0
