Honeywell 51309276-150 High-Performance I/O Link Module For Industrial Automation

Honeywell 51309276-150 High-Performance I/O Link Module For Industrial Automation

Product Details:

Additional Information:

Description:

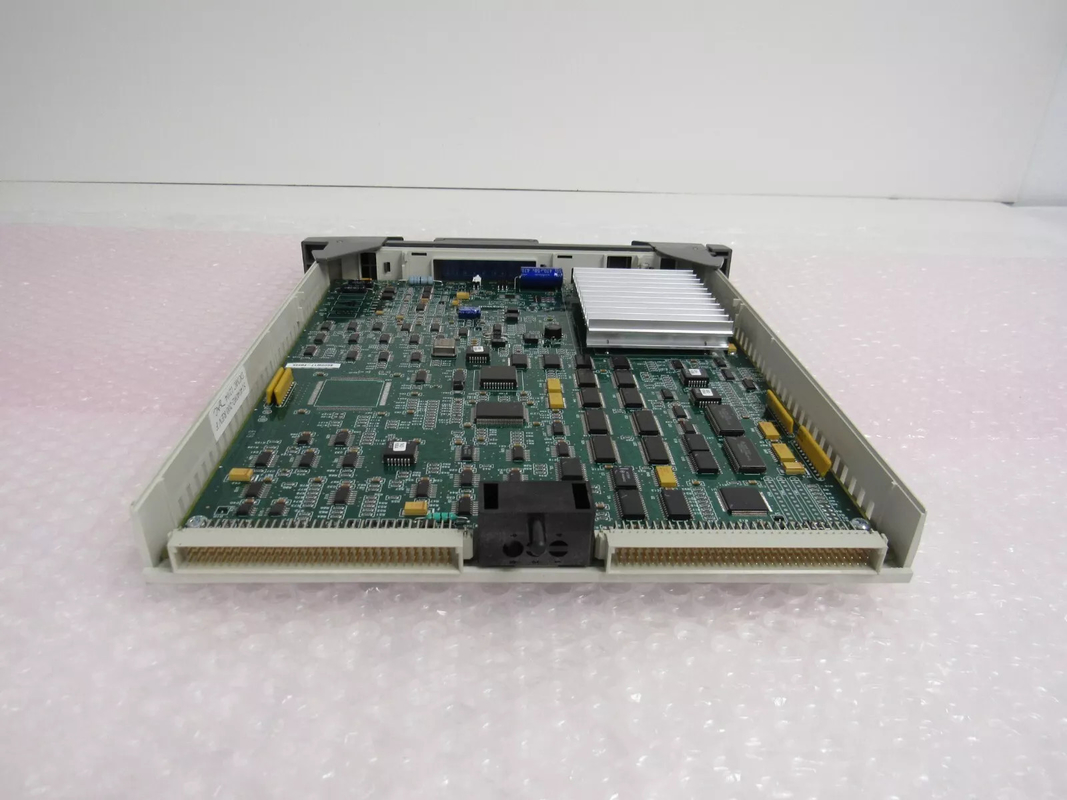

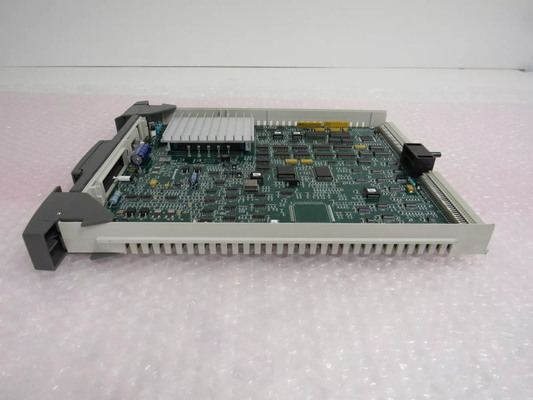

The Honeywell 51309276-150 is a robust I/O Link Module designed for seamless integration within HPMM (High-Performance Process Manager) systems. It features an I/O Link processor, SRAM for communication with the Control Card, and a 24Vdc to 5Vdc power converter, ensuring stable operation for both HPMM cards and the HPM UCN Interface module. This module is essential for high-speed data exchange in demanding industrial automation environments.

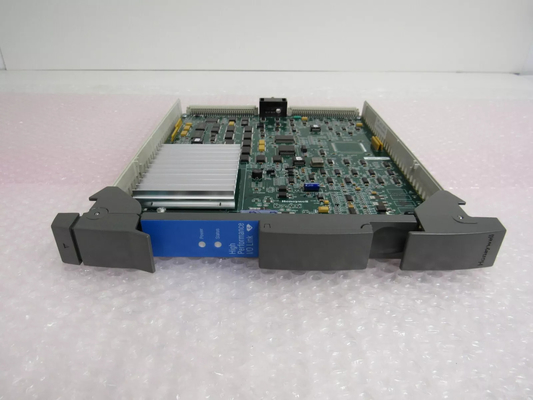

Installed in the card file’s left-most slots, the 51309276-150 works alongside the High-Performance Comm/Control Card and HPM UCN Interface module. Upon power-up, the Power indicator lights up, confirming 24Vdc supply from the cabinet. The I/O Link Status indicator remains off in the Alive state, only illuminating steadily once the system loads the operating software and enters the OK state, ensuring reliable performance.

Designed for real-time process control, this module supports dual UCN connectivity, with Rx-A/Rx-B indicators on the HPM UCN Interface and UCN A/B indicators under the Comm/Control Card’s front cover. These visual cues help technicians quickly verify network communication status, reducing troubleshooting time. The module undergoes automatic self-tests at startup, with a steady Status indicator confirming successful initialization.
