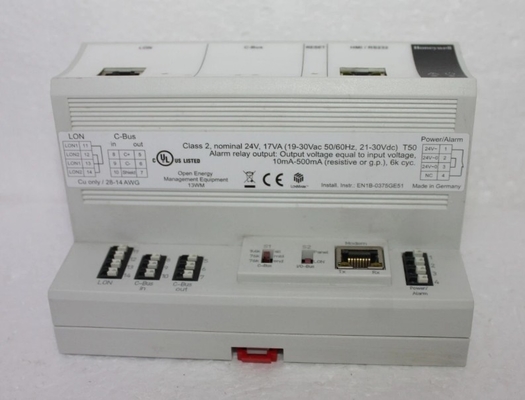

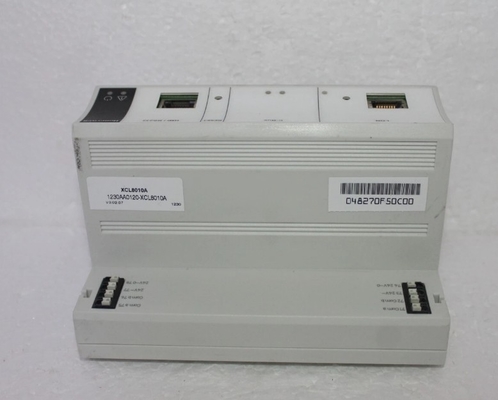

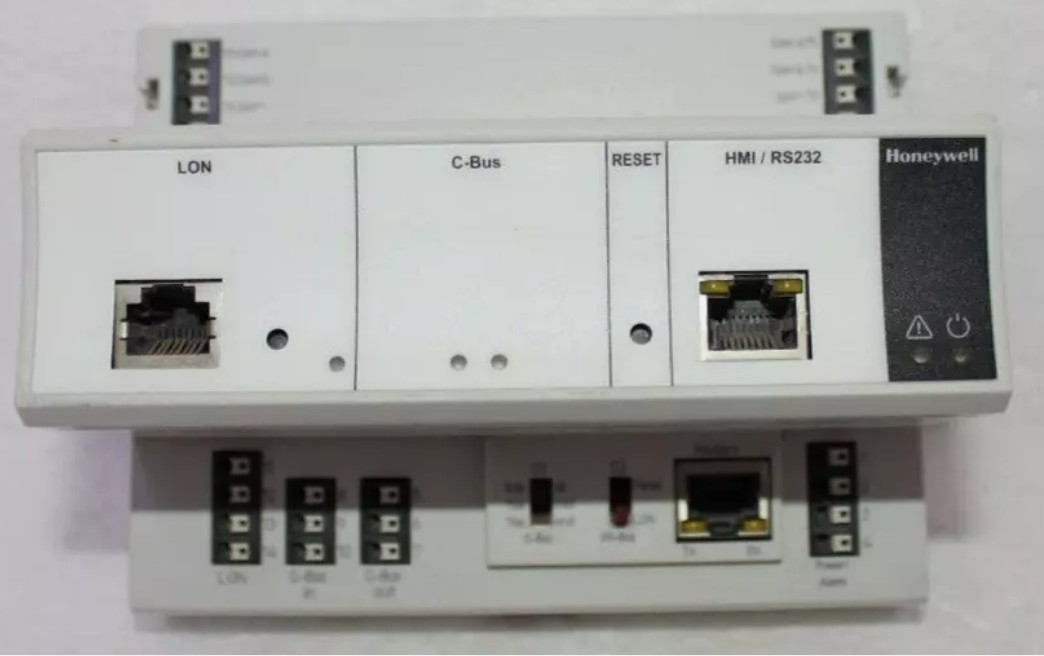

Honeywell XCL8010A Excel 800 Controller Module Pulse Width Modulation

Honeywell XCL8010A Excel 800 Controller Module Pulse Width Modulation

Product Details:

Additional Information:

Description:

The XCL8010A Controller Module can communicate with a variety of other devices , including any combination of up to sixteen Panel I/O Modules and/or LonWorks devices (e.g. room controllers).

A total of 381 data-points (of all types, e.g. internal virtual data-points and hardware data-points) are permitted. Typically, HVAC applications require an equal number of internal virtual data-points and hardware data-points. Up to 40 m distance between the XCL8010A and the Panel I/O Modules.

The Excel 800 Controller Module (XCL8010A) can communicate with a variety of other devices, including any combination of up to sixteen Panel I/O Modules and LONWORKS devices (e.g. room controllers).The Excel 800 Panel Bus I/O Modules communicate via the Panel Bus, while the Excel 800 LONWORKS Bus I/O modules utilize the LONWORKS communication standard and can thus also communicate with other LONWORKS controllers.

Both kinds of I/O modules consist of a terminal socket and a removable electronic module, allowing the socket to be mounted and wired before the electronic module is installed. All of the electronic modules can be swapped out without disrupting the power and bus connections: Simply unplug the “old” and insert the ”new” module. Software updates, configuration, and commissioning are all done automatically by the Excel 800 controller for the Panel Bus I/O Modules.
