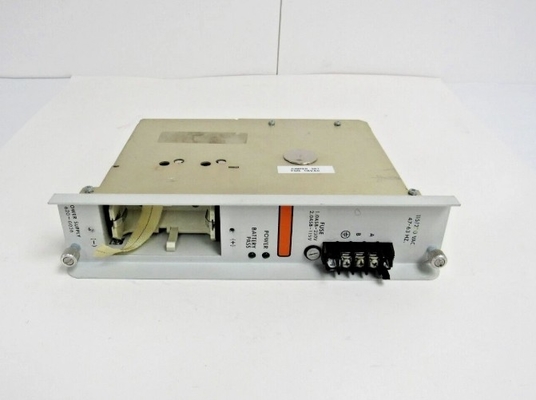

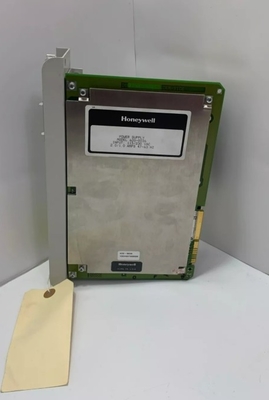

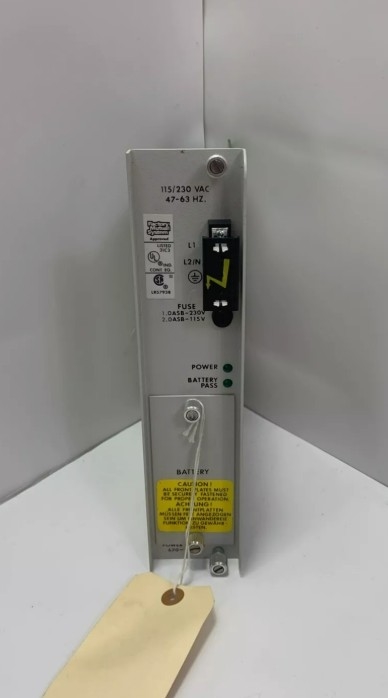

Honeywell 620-0036 Power Supply Module 62--35 Processor P/S - 115/230Vac 15amp

Honeywell 620-0036 Power Supply Module 62--35 Processor P/S - 115/230Vac, 15amp

Product Details:

Additional Information:

Description:

Find the DIP switch bank (SW3, SW4, or SW5) that contains the desired slot letter. The corresponding slot letter is silkscreened on the circuit board.

Find the pair of DIP switch positions that control the slot's configuration. There are two numbers, a "1" and a "2', silkscreened on the circuit board for each DIP switch pair. Notice that for each DIP switch pair, one switch position is designated as the First Setting (labeled 1) and the other is designated as the Second Setting (labeled 2). For example, slot K is configured by the SW3 DIP switch positions 5 and 6 (position 5 is the First Setting and position 6 is the Second Setting).

The second display is SELF-TEST, which indicates pass/fail status of the individual hardware elements involved in the self-test routine. If during a PLC Diagnostic Fail, the processor has passed in the SELF-TEST display and SELF-TEST FAIL (STF) appears in the Loader edit line, this indicates a software error. To correct this error, clear the program memory and reload the program.

The I/0 MODULE STATUS display lists the total I/0 module faults at any given time and the most significant addresses of up to eight faulted modules.
