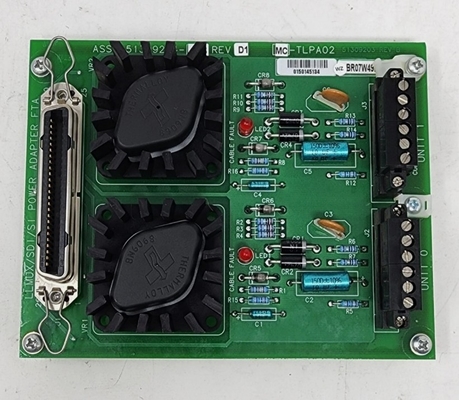

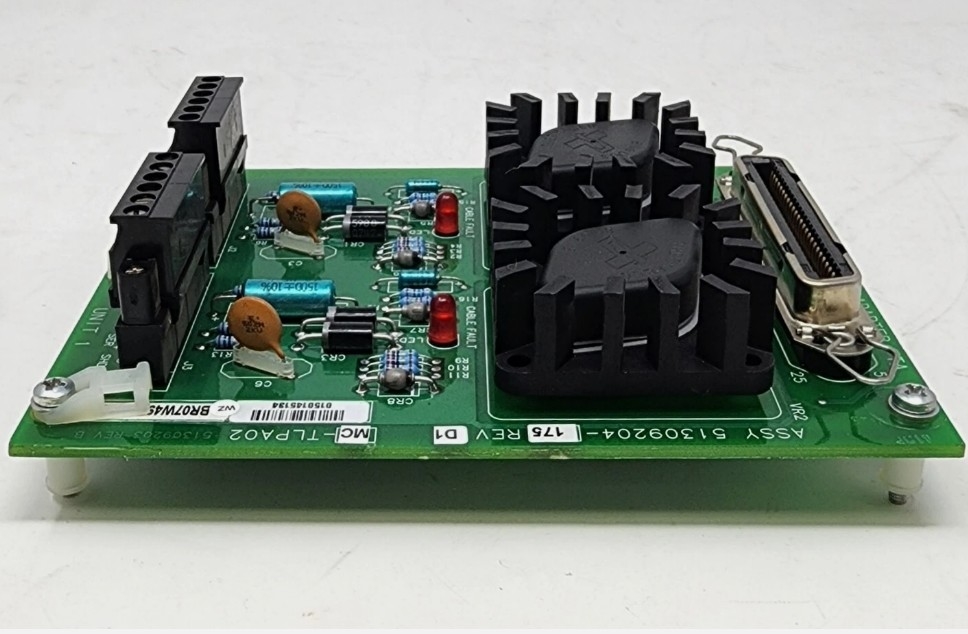

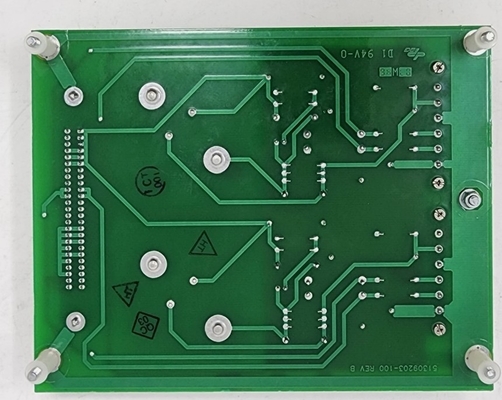

Honeywell 51309204-175 ASM - LLMUX/SDI/SI Power Adapter Board

Honeywell 51309204-175 ASM - LLMUX/SDI/SI Power Adapter Board

Product Details:

Additional Information:

Description:

The Honeywell 51309204-175 (MC-TLPA02) is a CE-compliant, conformal-coated power adapter that serves as a critical interface between Serial Device Interface (SDI) I/O Processors (IOPs) and up to two remote FTAs in xPM cabinet installations. Designed for industrial automation systems, this Size A (6-inch/152mm) module features compression terminals and supports two circuits, ensuring stable power distribution and signal integrity.

Internal Cabinet Setup: When installed in the same cabinet as the IOP, use the 51304465-xxx shielded cable (30cm to 300cm) for secure, low-noise connections. External Cabinet Setup: For remote mounting (up to 300m/1000ft), the MU-KFTSxx cable (12 length options, max 50m/164ft per segment) ensures reliable long-distance communication with braided shielding for EMI protection.

Enhanced Signal Integrity & Grounding: Internal cables use dual shielded twisted pairs, with grounding only at the Power Adapter end. External MU-KLXxxx cables feature four-wire shielded connections, requiring grounding at both ends for optimal noise immunity.

Ideal for process control, factory automation, and hazardous environments, this power adapter ensures seamless integration with Honeywell’s LLMux, SI, and SDI systems, delivering robust performance in demanding industrial applications.
