Name: X20IF1041-1 B&R X20 PLC Communication Module With A CANopen Interface
Brand: Joyoung International Trading Co.,Ltd
SKU: X20IF1041-1
Price: 4,690.00 USD
Availability: InStock

Home Products B&R Automation Plc

X20IF1041-1 B&R X20 PLC Communication Module With A CANopen Interface

Product Details:

Place of Origin:	Austria
Brand Name:	B&R
Certification:	CE
Model Number:	X20IF1041-1

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	USD
Packaging Details:	Original
Delivery Time:	3-5 working days
Payment Terms:	T/T
Supply Ability:	10EA

Contact Now

Detailed Product Description

Product Brand:	B&R	Product Model:	X20IF1041-1
Product Type:	Communication Module	ID Code:	0xA709
Power Consumption:	1.1 W	Fieldbus:	CANopen Master
Memory:	8 MB SDRAM	Warranty:	1 Year
Highlight:	X20IF1041-1 B&R X20 PLC , CANopen Interface B&R X20 PLC

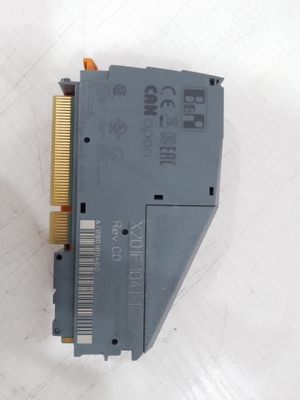

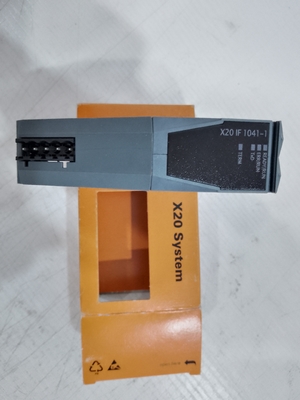

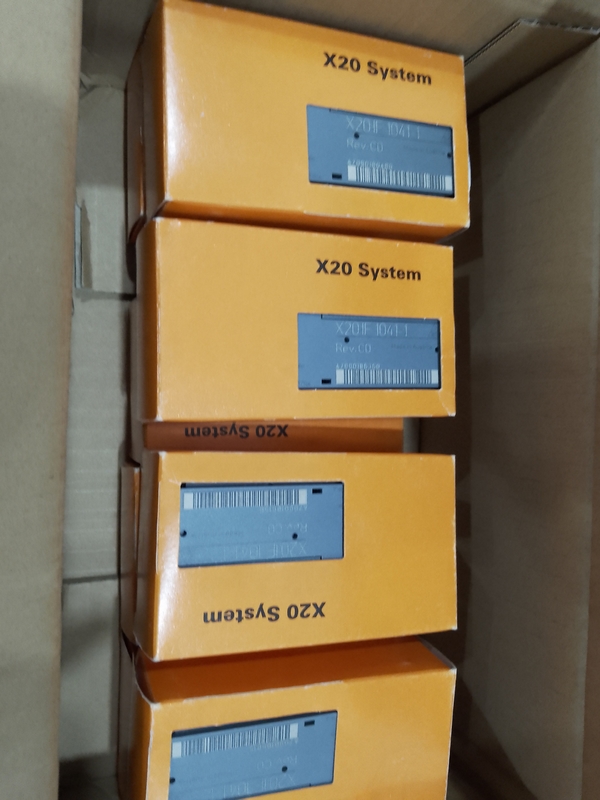

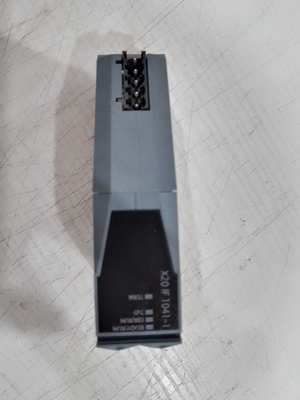

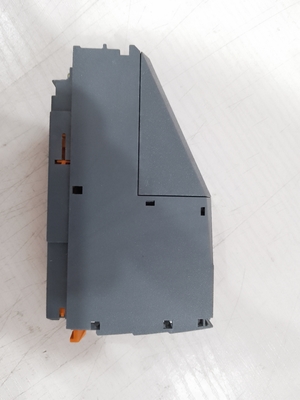

X20IF1041-1 B&R X20 PLC Communication Module With A CANopen Interface

X20IF1041-1 B&R X20 PLC Communication Module With A CANopen Interface 0

MATERIAL NUMBER:

X20IF1041-1

DESCRIPTION:

CANopen master
Integrated terminating resistor

The interface module is equipped with a CANopen interface. This allows third-party components to be integrated in the B&R system and makes it possible to quickly and easily transfer data in both directions.

The interface module can be operated in X20 CPUs or in the expandable POWERLINK bus controller X20BC1083.

Short description

Communication module	CANopen master

General information

B&R ID code	0xA709
Status indicators	Module status, network status, data transfer, terminating resistor
Diagnostics
Module status	Yes, using LED status indicator and software
Network status	Yes, using LED status indicator and software
Data transfer	Yes, using LED status indicator
Terminating resistor	Yes, using LED status indicator
Power consumption	1.1 W
Additional power dissipation caused by actuators (resistive) [W]	-
Certifications
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes
EAC	Yes
KC	Yes

Interfaces

Interface IF1
Fieldbus	CANopen master
Variant	5-pin male multipoint connector
Max. distance	1000 m
Transfer rate	Max. 1 Mbit/s
Terminating resistor	Integrated in module
Controller	netX100
Memory	8 MB SDRAM

Electrical properties

Electrical isolation	PLC isolated from CANopen (IF1)

Operating conditions

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Horizontal mounting orientation	-25 to 60°C
Vertical mounting orientation	-25 to 50°C
Derating	-
Storage	-40 to 85°C
Transport	-40 to 85°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block TB2105 separately.
Slot	In the X20 CPU and expandable bus controller X20BC1083
