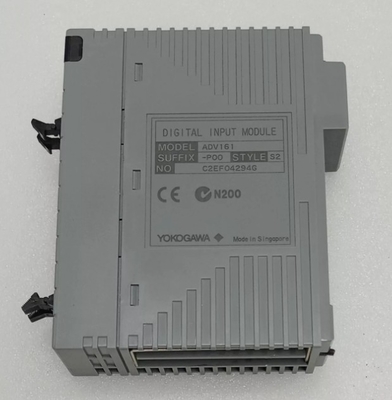

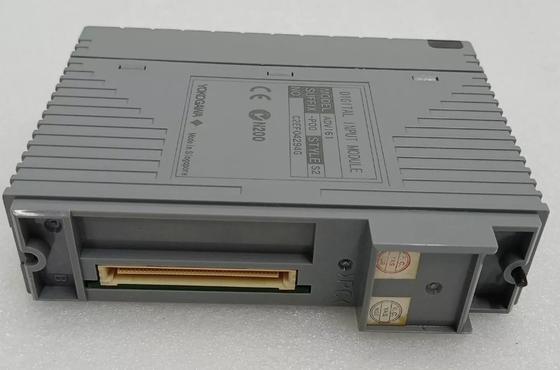

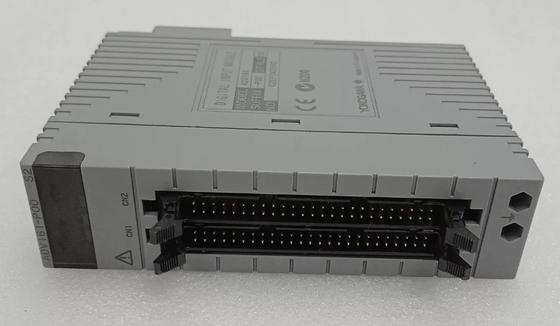

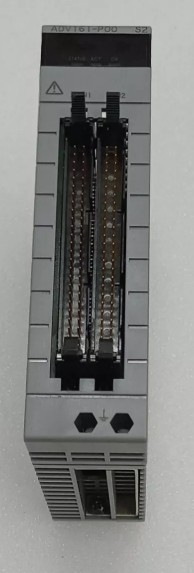

Name: ADV161-P00 YOKOGAWA Digital Iutput Modules Receive 64-channel 24 V DC ON/OFF Signals Dual Redundant
Brand: Joyoung International Trading Co.,Ltd
SKU: ADV161-P00
Price: 4,690.00 USD
Availability: InStock

Home Products Yokogawa DCS

ADV161-P00 YOKOGAWA Digital Iutput Modules Receive 64-channel 24 V DC ON/OFF Signals Dual Redundant

Product Details:

Place of Origin:	Singapore
Brand Name:	Yokogawa
Certification:	CO
Model Number:	ADV161-P00

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	inquiry
Packaging Details:	original
Delivery Time:	3-5 working days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Contact Now

Detailed Product Description

Product Model:	ADV161-P00	Condition:	In Stock
Quality:	New And Original	Market:	Worldwide Market
Material:	Original	Lead Time:	IN STOCK
Shipping Terms:	UPS / DHL / TNT / EMS / Fedex	Gross Weight:	2kg
Packing Size:	6" X 4" X 2" (15 Cm X 10 Cm X 5 Cm)
Highlight:	64-channel Digital Iutput Modules , Dual Redundant Digital Iutput Modules , 24 V DC Digital Iutput Modules

ADV161-P00 YOKOGAWA Digital Iutput Modules Receive 64-channel 24 V DC ON/OFF Signals Dual Redundant

Description:

This GS covers the hardware specifications of the Digital I/O Modules (FIO) that can be installed in the ESB Bus Node Unit (ANB10S, ANB10D), Optical ESB Bus Node Unit (ANB11S, ANB11D), and the Field Control Unit (AFV30S, AFV30D, AFV40S, AFV40D).

ADV161-P00 YOKOGAWA Digital Iutput Modules Receive 64-channel 24 V DC ON/OFF Signals Dual Redundant 0

ADV151 and ADV161 are common every 16-channel. All voltage input signals to be connected (24 V DC) must be in the same polarity.

The withstanding voltage for using a dedicated cable is 500 V AC (between input signal and system). The withstanding voltage for using MIL connector cable depends on the electrical specifications of its cable.

Additional Information:

Features
Number of input channels	64
Rated input voltage	24 V DC (sink/source)
Input ON voltage	20 to 26.4 V DC
Input OFF voltage	5.0 V DC or less
Input current (at rated input voltage)	2.5 mA±20 % / channel
Maximum allowable input voltage	30.0 V DC
Withstanding voltage	Between input signal and system: 2 kV AC, For 1 minute Between commons: 500 V AC, For 1 minute, common every 16-channel
Functions Status input Pushbutton input SOE input	Function for detecting ON/OFF status Function for counting the pushbutton edges —
Input response time	8 ms or less (for status input)
Minimum ON detection time	20 ms (for pushbutton input)
Maximum ON/OFF cycle	25 Hz (for pushbutton input)
Maximum current consumption	550 mA (5 V DC)
External connection	Dedicated cable (AKB337), MIL connector cable

Product Details:

Brand Name	YOKOGAWA
Model	ADV161-P00
Condition	New
Gross Weight/Shipping Weight	2.2 lbs / 35.2 oz / 1kg
Packing Size	6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Country of Origin/Original Country	United States (USA)
Lead Time	In Stock
Shipping Port	Xiamen
Payment	T/T
Sales Price	Inquiry
Color	Depend on product
Warranty	12 months
Lead time	5-8 work days
Courier partners	DHL, UPS, TNT, FedEx and EMS
