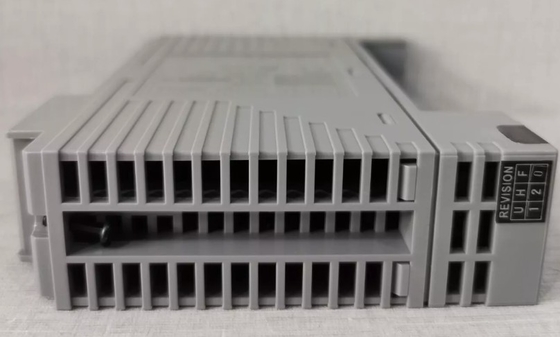

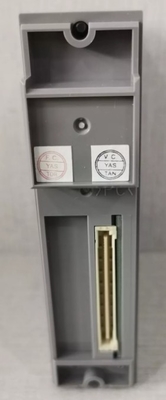

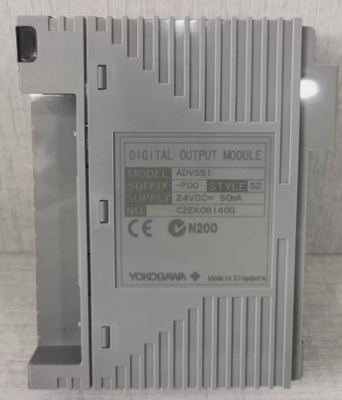

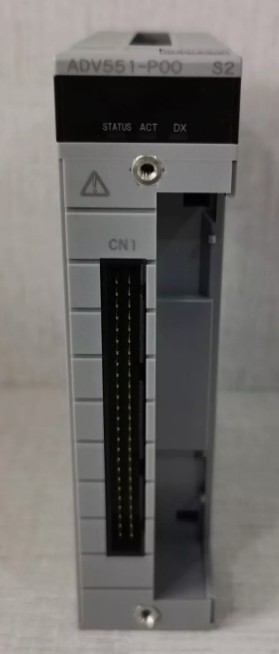

YOKOGAWA ADV551-P00 16 Channel Digital Onput Module Dual Redundant Configuration

YOKOGAWA ADV551-P00 16 Channel Digital Onput Module Dual Redundant Configuration

  • YOKOGAWA ADV551-P00 16 Channel Digital Onput Module Dual Redundant Configuration
  • YOKOGAWA ADV551-P00 16 Channel Digital Onput Module Dual Redundant Configuration
  • YOKOGAWA ADV551-P00 16 Channel Digital Onput Module Dual Redundant Configuration
  • YOKOGAWA ADV551-P00 16 Channel Digital Onput Module Dual Redundant Configuration
  • YOKOGAWA ADV551-P00 16 Channel Digital Onput Module Dual Redundant Configuration
YOKOGAWA ADV551-P00 16 Channel Digital Onput Module Dual Redundant Configuration
Product Details:
Place of Origin: Singapore
Brand Name: Yokogawa
Certification: CO
Model Number: ADV551-P00
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: inquiry
Packaging Details: original
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 10 Piece per a day
Contact Now
Detailed Product Description
Product Model: ADV551-P00 Condition: In Stock
Quality: New And Original Market: Worldwide Market
Material: Original Lead Time: IN STOCK
Shipping Terms: UPS / DHL / TNT / EMS / Fedex Gross Weight: 2kg
Packing Size: 6" X 4" X 2" (15 Cm X 10 Cm X 5 Cm)
Highlight:

16 Channel Digital Onput Module

,

Dual Redundant Configuration

YOKOGAWA ADV551-P00 16 Channel Digital Onput Module Dual Redundant Configuration





Product Details:



Brand Name YOKOGAWA
Model ADV551-P00
Condition New
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Country of Origin/Original Country United States (USA)
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price Inquiry
Color Depend on product
Warranty 12 months
Lead time 5-8 work days
Courier partners DHL, UPS, TNT, FedEx and EMS




Additional Information:



Features
Number of output channels 32
Rated applied voltage 24 V DC
External power supply rating 24 V DC, 50 mA
External power supply voltage range 20.4 to 26.4 V DC
Output ON voltage maximum value 2 V DC
Leak current maximum value when output OFF 0.1 mA
Output format Current sink
Maximum load current 100 mA/channel, 26.4 V
Withstanding voltage

Between output signal and system: 2 kV AC,

For 1 minute Between commons: 500 V AC,

For 1 minute, common minus (–) side every 16-channel

Functions

Status output

Pulse width output

Time-proportioning output

ON/OFF status output function

One-shot pulse width output function

Time-proportioning ON/OFF

Output response time

3 ms or less (for status output)

10 ms or less (for mixed status and pulse outputs)

Pulse width 8 ms to 7200 s
Pulse width resolution 8 ms, but ON/OFF delay of maximum 1 ms is added
Maximum current consumption 700 mA (5 V DC) 60 mA (external power supply)
External connection Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable




Description:



ADV551 is a digital output module.The Digital Output Modules output 32-channel or 64-channel transistor contact signals. The ADV551 can be used in dual redundant configuration.



YOKOGAWA ADV551-P00 16 Channel Digital Onput Module Dual Redundant Configuration 0



Description
Model ADV551

Digital Output Module

(32-channel,24 V DC,Isolated)

Suffix Codes -P With pulse width output function/time-proportional output function
5 Without status display;with no explosion protection
6 With status display;with no explosion protection
E Without status display;with explosion protection
F With status display;with explosion protection
0 Basic type
3 With ISA Standard G3 option and temperature(-20 to 70 ℃)option
Option Codes /D5A00

With KS Cable Interface Adapter for 32-channel Digital

[Model:ATD5A-00]

/D5S00 With Pressure Clamp Terminal Block for Digital Output [Model:ATD5S-00]
/D5S10 With Pressure Clamp Terminal Block for Digital Output(surge absorber) [Model:ATD5S-00]
/D5D00 With Dual Pressure Clamp Terminal Block for Digital Output [Model:ATD5D-00]
/D5D10 With Dual Pressure Clamp Terminal Block for Digital Output(surge absorber) [Model:ATD5D-10]
/CCC01 With Connector Cover for MIL Cable [Model:ACCC01]





YOKOGAWA ADV551-P00 16 Channel Digital Onput Module Dual Redundant Configuration 1





Datasheet Link:Yokogawa ADV551-P00.pdf
