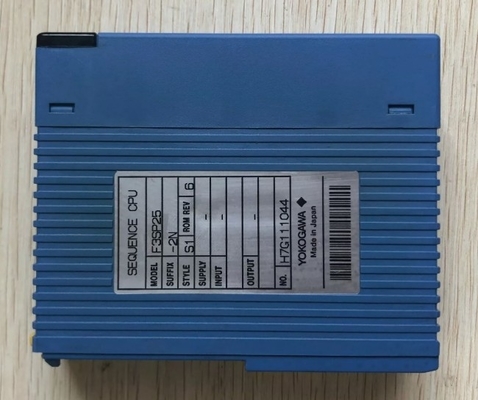

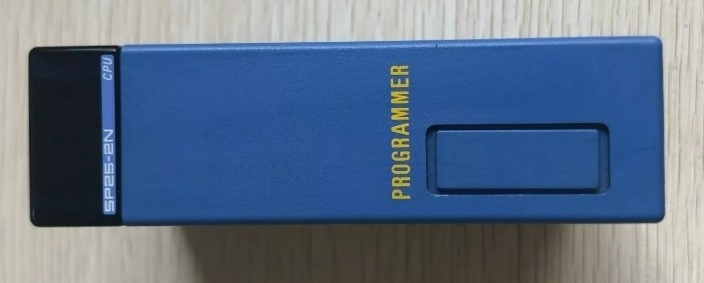

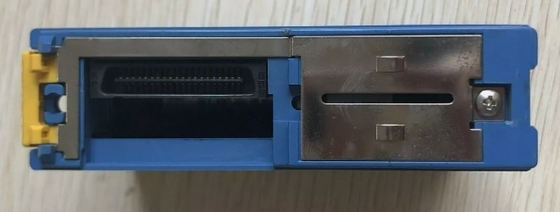

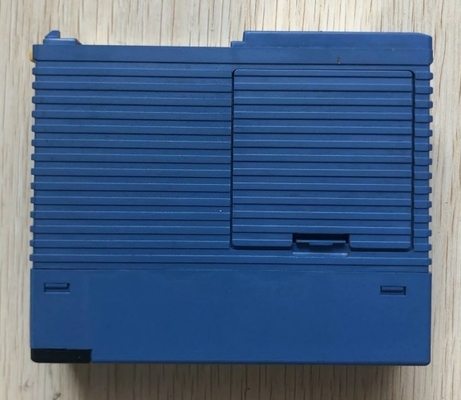

F3SP25-2NS1 YOKOGAWA CPU Module Range-free Multi-controllers High-speed Instruction

F3SP25-2NS1 YOKOGAWA CPU Module Range-free Multi-controllers High-speed Instruction


Description:

The F3SP25-2NS1 is a CPU module for the FA-M3 Range-free Multi-controllers. It is dedicated to process ladder sequences.

The high-speed instruction processing capability of the F3SP25-2NS1 makes it ideal for applications that require high speed and quick response.

The use of index qualification and an object ladder language facilitates programming and program maintenance.Sampling trace features are provided that can collect and display the status of multiple devices with a maximum of 1024 scans.



The programming tool link port is provided with a personal computer link feature, which allows the F3SP25-2NS1 to connect to a higher-level computer or display without a personal computer link module.

The module permits reconfiguration of device size and operating mode according to the application in use.The user can define and register new instructions.

Program debugging and maintenance can be easily performed using a rich set of functions such as forced set/reset that takes effect regardless of the result of program execution.



Programs and data can be saved on an optional ROM pack.Programs can be protected using a protection feature.When installed in slot 2, 3 or 4, the F3SP25-2NS1 functions as an add-on sequence CPU module.

High-reliability design and powerful self-diagnostics are provided. Errors detected during program execution can be logged with predefined messages.


Product Details:




Additional Information:






Datasheet Link:Yokogawa F3SP25-2NS1.pdf
