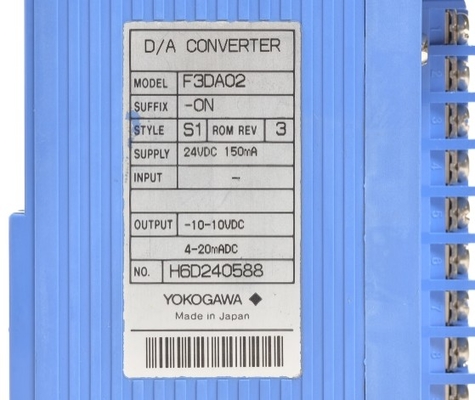

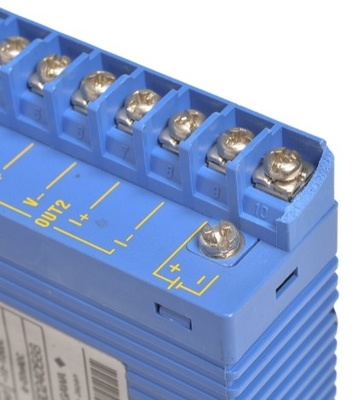

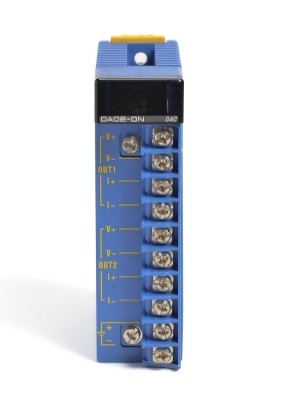

F3DA02-0NS1 YOKOGAWA Digital Analog Output Module D/A Converter PLC

F3DA02-0NS1 YOKOGAWA Digital Analog Output Module D/A Converter PLC

Product Details:

Description:

FA-M3 power supply modules supply power to the FA-M3 Rangefree Multi-controllers. One power supply module is required for each FA-M3 base module.

Avoid grounding the FG terminal of the FA-M3 controller to the same groud as high-voltage power lines,Ground the terminal to an independent JIS Class 3 ground (resistance up to 100Ω)

The F3PU10-0S and F3PU16-0S are used for the F3BU04-0N and F3BU06-0N base modules. The F3PU20-0S, F3PU26-0S, F3PU30- 0S and F3PU36-0S are used for the F3BU05-0D, F3BU09-0N, F3BU13-0N and F3BU16-0N base modules.

FA-M3 base modules serve as the base for accommodating various modules. FA-M3 base modules are available in 4-, 5-, 6-, 9-, 13- and 16-slot versions. Choose an appropriate base module according to the target system requirements. There are no differences between main units and sub-units.

The signal ground of the main unit is attached to the metal chassis of the base modules.Make sure that the total current consumption of the modules to be installed does not exceed the current capacity of the power supply module.

When assigning inputs/outputs,the user shoule avoid locating AC-supplied I/O modules in the vicinity of the CPU module.
