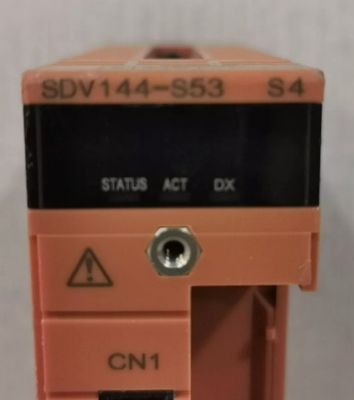

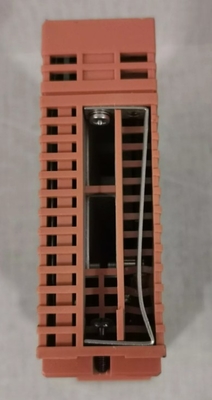

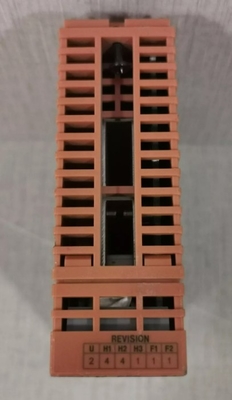

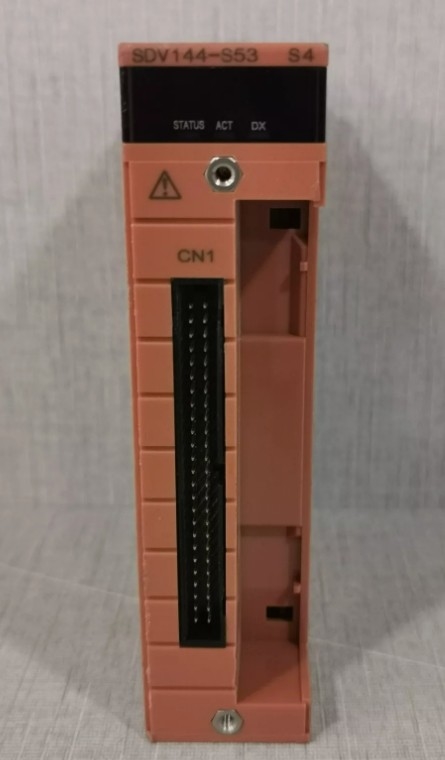

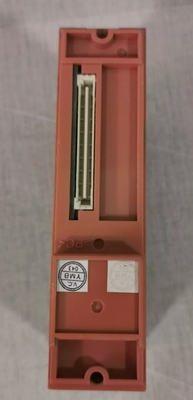

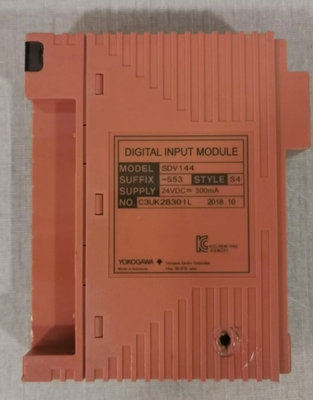

SDV144-S53 YOKOGAWA Digital I/O Input Modules (For FIO) 16-Channel Module Isolation 24 V DC Dual-Redundant

SDV144-S53 YOKOGAWA Digital I/O Input Modules (For FIO) 16-Channel Module Isolation 24 V DC Dual-Redundant

Description:

If SDV144 field wiring diagnostic functions are used, the following diagnostic elements should be installed for individual channels in the vicinity of the field equipment:

• SCB100 (for defective open circuit detection while accepting off signals)
• SCB110 (for defective short-circuit detection while accepting on signals)
• Input signals are normally off while in normal operation.
• Input signals are normally on while in normal operation.

Input modules accept contact signals from the field. SDV144 can be made dual-redundant.

• These voltages show the case using the field power supply floating. When the field power supply is grounded, the system (functional) ground is connected to the field ground, which is not isolated. For the higher noise immunity, floating the field power supply is recommended
• When the withstanding voltage of the field power supply between the secondary side and the ground is lower than the value shown in the table above, these voltages are adopted as the withstanding voltage of the field power supply.
• Number of input channels which a user can use and external power supply are restricted in case of SDV144-S£C. Refer to “ProSafe-RS Outline of I/O Modules (for FIO)” (GS 32P06K60-01EN).
• The contact rating and the external power supply of SDV144 style code S1, S2 and S3 are 24 V DC ± 5 %.
•  When connecting SDV144 and SED4D terminal board using the dedicated signal cable, the withstand voltage is 500 V AC (between input signal lines and system). If MIL connector cables are used, the withstand voltage depends on their cable’s electrical specifications.

Product Details:

Additional Information:

Datasheet Link:Yokogawa SDV144-S53.pdf
