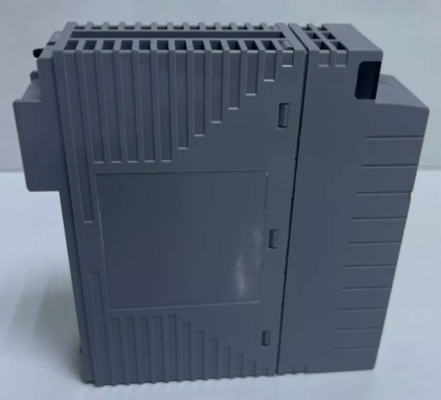

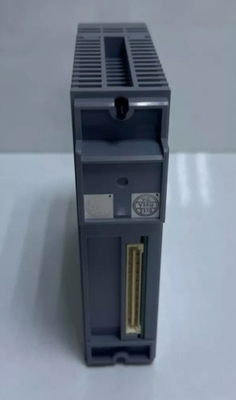

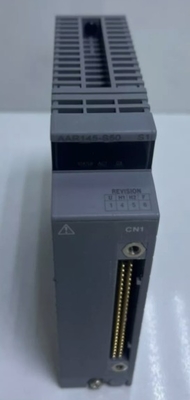

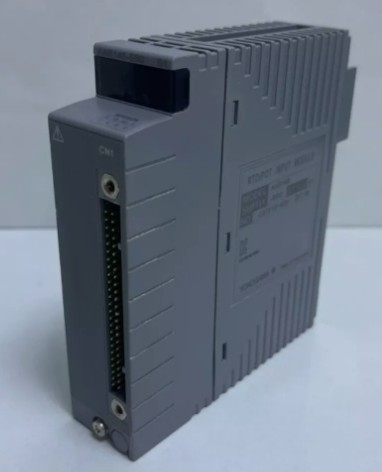

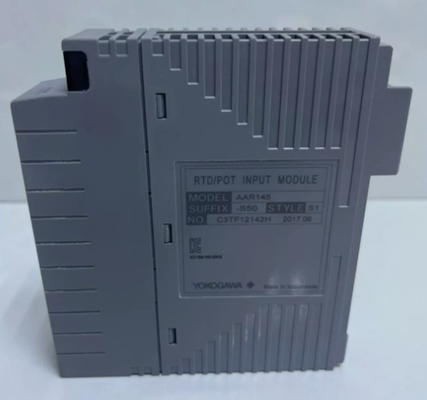

YOKOGAWA AAR145-S50S1 Analog RTD/POT Input Module Dual-Redundant Configuration 16 Isolated Channels
Product Details:
| Brand Name |
YOKOGAWA |
| Model |
AAR145-S50S1 |
| Condition |
New |
| Gross Weight/Shipping Weight |
2.2 lbs / 35.2 oz / 1kg |
| Packing Size |
6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm) |
| Country of Origin/Original Country |
United States (USA) |
| Lead Time |
In Stock |
| Shipping Port |
Xiamen |
| Payment |
T/T |
| Sales Price |
Inquiry |
| Color |
Depend on product |
| Warranty |
12 months |
| Lead time |
5-8 work days |
| Courier partners |
DHL, UPS, TNT, FedEx and EMS |
Additional Information:
| Features |
| Number of input channels |
16,isolated channels |
| Number of input channel |
RTD:JIS C1604:1997,IEC751:1995 Pt100(3-wire type)
POT:Total resistance 100Ω to 10 kΩ
Span resistance:50% or large of total resistance
|
| Swiching input signals |
RTD/POT can be selected indivifually for CH1 to CH16 |
| Allowable input voltage |
±5 V |
| Withstanding voltage |
Between input and system:500 V AC(for single card:1500 V AC),For 1 minute
Between input channels:200 V AC,For 1 minute
|
| Accuracy |
RTD: ±150 mΩ
POT: ±0.2 %/FS
|
| Allowable total resistance of signal source plus wiring |
150 Ω or less (wiring resistance per wire) |
| Measurement current |
RTD:1 mA |
| Data update period |
1 s |
| Burn-out |
All channels can be set together
Setting:not available/available(UP/DOWN)
Detection time:60 s
|
| Temperature drift |
RTD:±0.3 Ω/10 °C
POT:±0.4 %/10 °C
|
| Maximum current consumption |
350 mA(5 V DC) |
| External connection |
Dedicated cable(KS8/AKB335) |
Description:
YOKOGAWA AAR145-S50 S1 TC/RTD Input Module These modules receive signals from mV, thermocouple (TC), RTD, and potentiometer (POT), and they are isolated between the field and the system as well as in between each channel. They can be used in dual-redundant configuration
These modules receive signals from mV, thermocouple (TC), RTD, and potentiometer (POT), and they are isolated between the field and the system as well as in between each channel. They can be used in dual-redundant configuration
| Description |
| Suffix Codes |
-S |
Standard type |
| 5 |
With no explosion protection |
| E |
With explosion protection |
| 0 |
Basic type |
| 3 |
With ISA Standard G3 option and temperature (-20 to 70 °C) option |
