Allen-Bradley 5094-IB16 Flex 5000 Series 16 Sinking Input Module

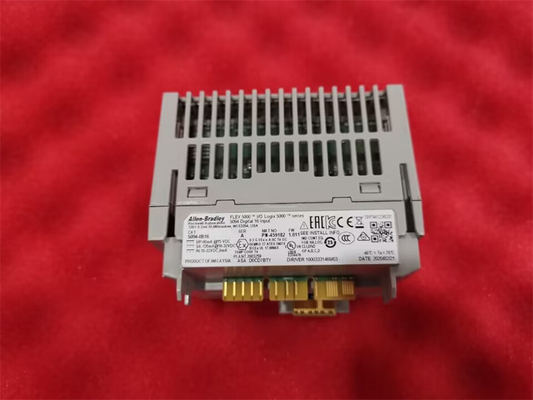

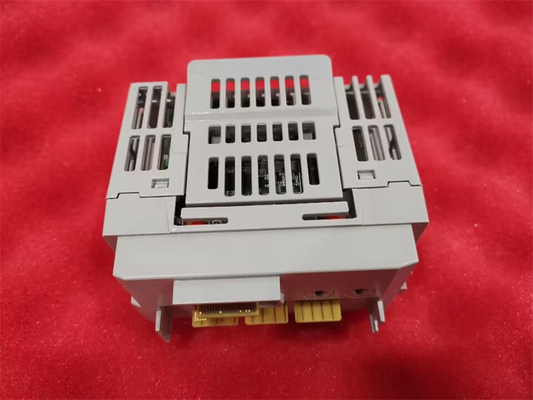

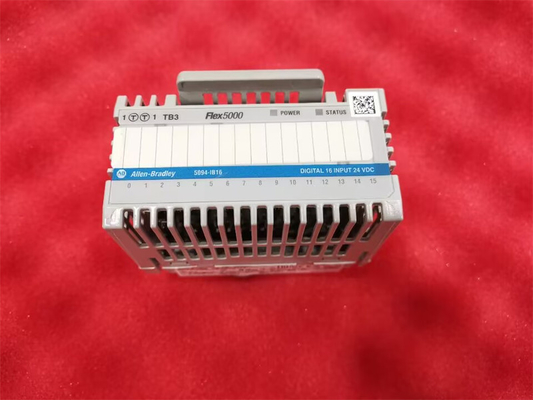

The Allen-Bradley 5094-IB16 module is a 16-point digital sinking input module from the FLEX 5000 series. This input module is rated for use in industrial settings that have Pollution Degree 2 ratings and for use in applications that have overvoltage Category II ratings. The 5094-IB16 sinking input module can be installed at an altitude of up to 6562 feet or 2000 meters above sea level and operate without derating. This module is rated for industrial environments only and should not be used in residential environments. The 5094-IB16 16-point digital sinking input module ships as an open module and it should be installed in an enclosure that will protect it from dangerous elements in its operating environment and protect its users from being injured by the voltage in its live parts.

The Allen-Bradley 5094-IB16 input module operates with an on-state voltage range of 10 to 32 Volts DC. Its maximum off-state voltage is 5 Volts DC and its maximum off-state current is 1.5 milliamps. This input module can handle different levels of input impedance at different voltage levels. Its minimum input impedance rating is 1.3 kiloohms at 10 Volts DC, its nominal input impedance rating is 4 kiloohms at 24 Volts DC, and its maximum input impedance rating is 7.4 kiloohms at 32 Volts DC. The 5094-IB16 input module is sensitive to ESD or electrostatic discharge. The technicians who are installing or servicing this module should avoid ESD by using a work station that is static-safe, touching a grounded object that discharges potential static, and by avoiding touching the connectors, pins, or circuit components.
