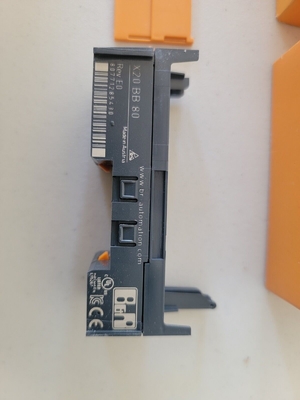

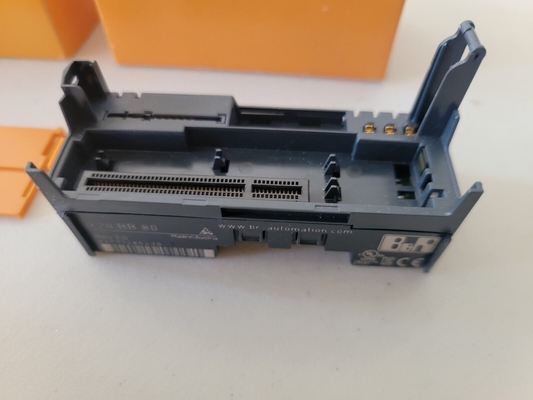

Name: X20BB80 B&R X20 SYSTEM Bus Base Controller Power Supply Module
Brand: Joyoung International Trading Co.,Ltd
SKU: X20BB80
Price: 4,690.00 USD
Availability: InStock

Home Products B&R Automation Plc

X20BB80 B&R X20 SYSTEM Bus Base Controller Power Supply Module

Product Details:

Place of Origin:	Austria
Brand Name:	B&R
Certification:	CE
Model Number:	X20BB80

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	USD

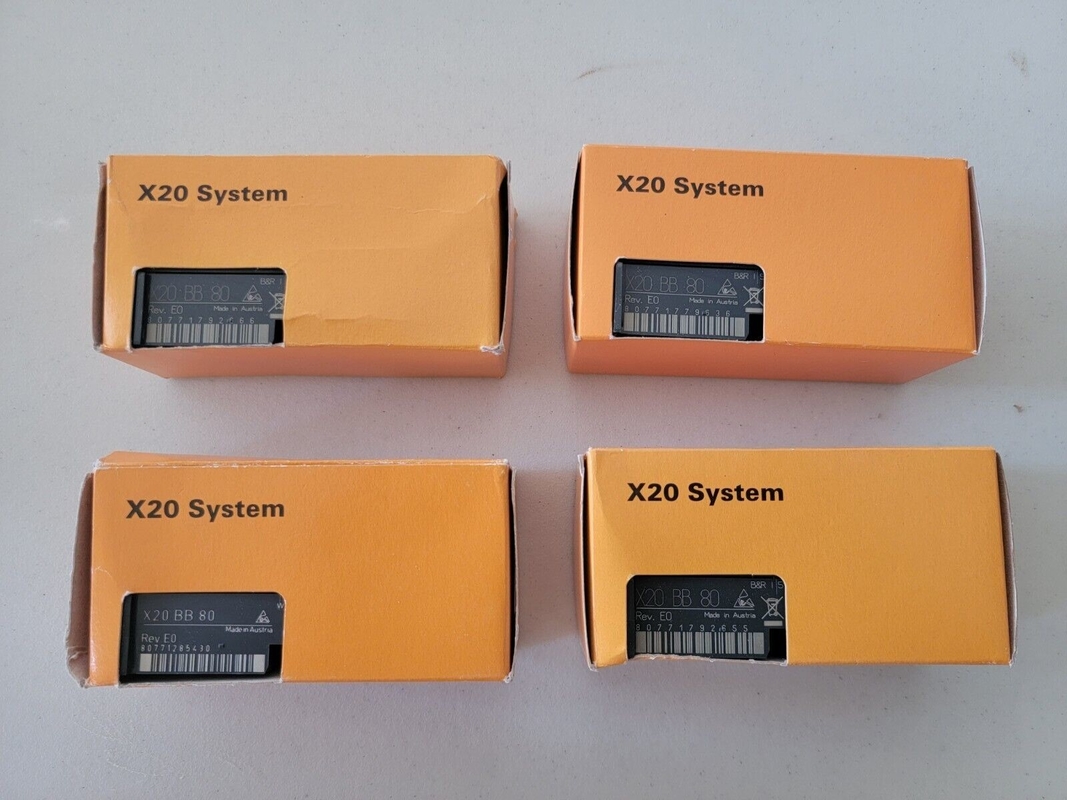

Packaging Details:	Original
Delivery Time:	3-5 working days
Payment Terms:	T/T
Supply Ability:	10EA

Contact Now

Detailed Product Description

Product Brand:	B&R	Product Model:	X20BB80
Product Type:	Base Module	Bus:	0.25 W
Certifications:	CE	Power Supply:	24 VDC
Protection:	IP20	Warranty:	1 Year
Highlight:	X20BB80 B&R X20 SYSTEM , B&R X20 SYSTEM Power Supply Module

X20BB80 B&R X20 SYSTEM Bus Base Controller Power Supply Module 0

MATERIAL NUMBER:

X20BB80

DESCRIPTION:

Bus base

The following modules are used on the bus module:

Base module (BC, HB, etc.)
Supply module

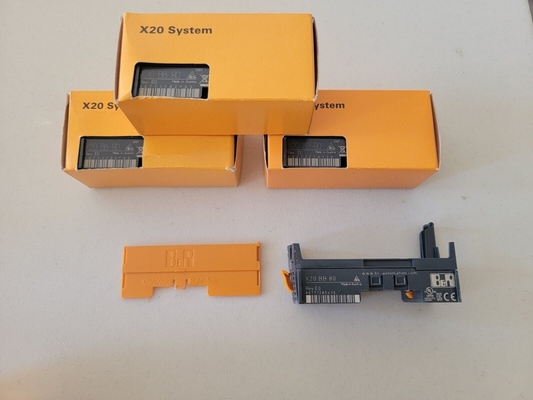

The left and right end cover plates are included in delivery.

Short description

Bus module	Bus base - Backplane for bus controller fieldbus interface and bus controller power supply module

General information

Power consumption
Bus	0.25 W
Internal I/O	-
Additional power dissipation caused by actuators (resistive) [W]	-
Certifications
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes
EAC	Yes
KC	Yes

I/O power supply

Nominal voltage	24 VDC
Permissible contact load	10 A

Operating conditions

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Horizontal mounting orientation	-25 to 60°C
Vertical mounting orientation	-25 to 50°C
Derating	-
Storage	-40 to 85°C
Transport	-40 to 85°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing

Mechanical properties

Note	Left and right X20 end cover plates included in delivery
Pitch	37.5+0.2mm
