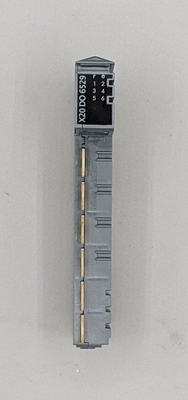

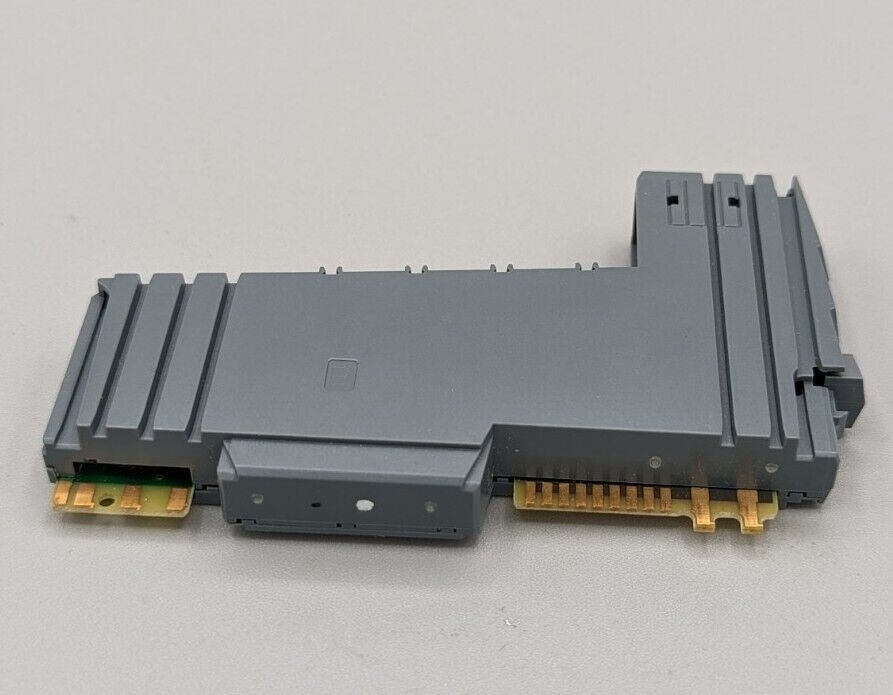

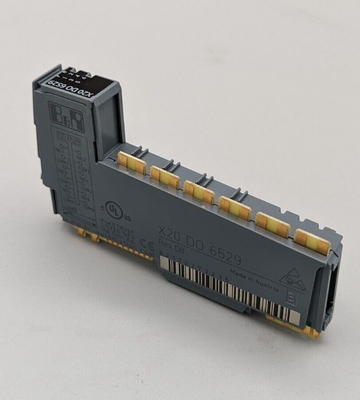

Name: X20DO6529 B&R X20 I/O Module 6 Digital Outputs 30 VDC / 115 VAC
Brand: Joyoung International Trading Co.,Ltd
SKU: X20DO6529
Price: 4,690.00 USD
Availability: InStock

Home Products B&R Automation Plc

X20DO6529 B&R X20 I/O Module 6 Digital Outputs 30 VDC / 115 VAC

Product Details:

Place of Origin:	Austria
Brand Name:	B&R
Certification:	CE
Model Number:	X20DO6529

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	USD
Packaging Details:	Original
Delivery Time:	3-5 working days
Payment Terms:	T/T
Supply Ability:	10EA

Contact Now

Detailed Product Description

Product Brand:	B&r	Product Model:	X20DO6529
Product Type:	I/O Module	ID Code:	0x2019
Bus:	1.1 W	Nominal Voltage:	30 VDC / 115 VAC
Certifications:	CE	Warranty:	1 Year
Highlight:	X20DO6529 B&R X20 I/O Module , B&R X20 I/O Module 30 VDC

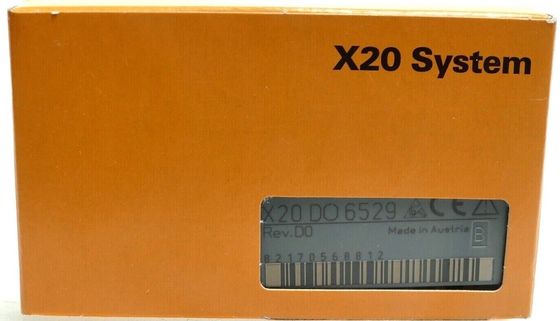

X20DO6529 B&R X20 I/O Module 6 Digital Outputs 30 VDC / 115 VAC 0

MATERIAL NUMBER:

X20DO6529

DESCRIPTION:

6 digital outputs
Relay module for 115 VAC
6 normally open contacts
Single-channel isolated outputs

The module is equipped with 6 relay outputs.

Short description

I/O module	6 digital outputs 30 VDC / 115 VAC, outputs single-channel isolated

General information

B&R ID code	0x2019
Status indicators	I/O function per channel, operating state, module status
Diagnostics
Module run/error	Yes, using LED status indicator and software
Outputs	Yes, using LED status indicator
Power consumption
Bus	1.1 W
Internal I/O	-
Additional power dissipation caused by actuators (resistive) [W]	+0.45
Certifications
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes
EAC	Yes
KC	Yes

Digital outputs

Variant	Relay / Normally open contact Channels are single-channel isolated.
Nominal voltage	30 VDC / 115 VAC
Max. voltage	125 VAC
Switching voltage	Max. 110 VDC / 125 VAC
Rated frequency	DC / 45 to 63 Hz
Nominal output current	1 A at 30 VDC / 0.5 A at 115 VAC
Total nominal current	6 A at 30 VDC / 3 A at 115 VAC
Actuator power supply	External
Inrush current	Max. 2 A (per channel)
Contact resistance	75 mΩ at 6 VDC / 1 A
Switching delay
0 → 1	≤4 ms
1 → 0	≤4 ms
Insulation voltages
Channel - Bus	Tested at 1500 VAC
Channel - Channel	Tested at 1000 VAC
Service life
Electrical	Min. 100 x 10³ ops.
Mechanical	Min. 50 x 106ops. (3 Hz)
Switching capacity
Minimum	0.01 mA / 10 mV DC
Maximum	30 W / 62.5 VA
Protective circuit
Internal	None
External
AC	RC combination or VDR
DC	Inverse diode, RC combination or VDR

Electrical properties

Electrical isolation	Channel isolated from channel, bus and I/O power supply

Operating conditions

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Horizontal mounting orientation	-25 to 60°C
Vertical mounting orientation	-25 to 50°C
Derating	See section "Derating".
Storage	-40 to 85°C
Transport	-40 to 85°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately.
Pitch	12.5+0.2mm
