Name: X20IF1061-1 B&R X20 PLC Communication Module With A PROFIBUS DP V1 Interface
Brand: Joyoung International Trading Co.,Ltd
SKU: X20IF1061-1
Price: 4,690.00 USD
Availability: InStock

Home Products B&R Automation Plc

X20IF1061-1 B&R X20 PLC Communication Module With A PROFIBUS DP V1 Interface

Product Details:

Place of Origin:	Austria
Brand Name:	B&R
Certification:	CE
Model Number:	X20IF1061-1

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	USD
Packaging Details:	Original
Delivery Time:	3-5 working days
Payment Terms:	T/T
Supply Ability:	10EA

Contact Now

Detailed Product Description

Product Brand:	B&r	Product Model:	X20IF1061-1
Product Type:	Communication Module	ID Code:	0xA716
Fieldbus:	PROFIBUS DP V0/V1 Master	Memory:	8 MB SDRAM
Certifications:	CE	Warranty:	1 Year
Highlight:	X20IF1061-1 B&R X20 PLC , B&R X20 PLC Communication Module

X20IF1061-1 B&R X20 PLC Communication Module With A PROFIBUS DP V1 Interface

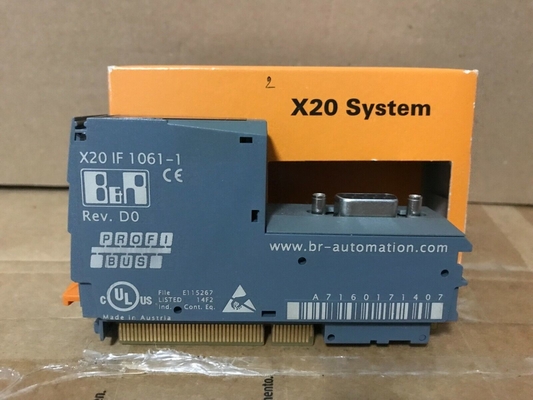

X20IF1061-1 B&R X20 PLC Communication Module With A PROFIBUS DP V1 Interface 0

MATERIAL NUMBER:

X20IF1061-1

DESCRIPTION:

PROFIBUS DP V1 master

The interface module is equipped with a PROFIBUS DP V1 interface. This allows third-party components to be integrated in the B&R system and makes it possible to quickly and easily transfer data in both directions.

The interface module can be operated in X20 CPUs or in the expandable POWERLINK bus controller X20BC1083.

Short description

Communication module	1x PROFIBUS DP V0/V1 master

General information

B&R ID code	0xA716
Status indicators	Module status, data transfer
Diagnostics
Module status	Yes, using LED status indicator and software
Network status	Yes, using LED status indicator and software
Data transfer	Yes, using LED status indicator
Power consumption	1.8 W
Additional power dissipation caused by actuators (resistive) [W]	-
Certifications
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes
EAC	Yes
KC	Yes

Interfaces

Interface IF1
Fieldbus	PROFIBUS DP V0/V1 master
Variant	9-pin female DSUB connector
Max. distance	1200 m
Transfer rate	Max. 12 Mbit/s
Controller	netX100
Memory	8 MB SDRAM
Cyclic data
Input data	Max. 3.5 kB
Output data	Max. 3.5 kB

Electrical properties

Electrical isolation	PLC isolated from PROFIBUS (IF1)

Operating conditions

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Horizontal mounting orientation	-25 to 60°C
Vertical mounting orientation	-25 to 50°C
Derating	-
Storage	-40 to 85°C
Transport	-40 to 85°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing

Mechanical properties

Slot	In the X20 CPU and expandable bus controller X20BC1083
