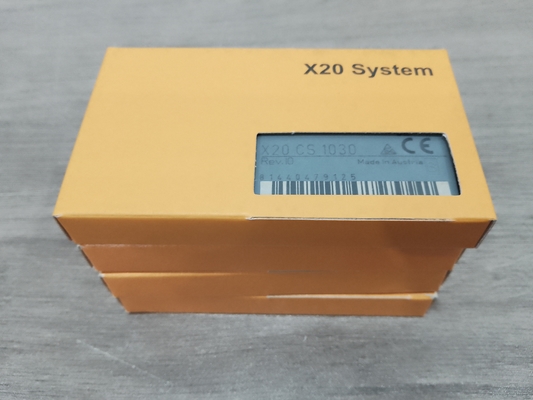

Name: X20CS1030 B&R X20 PLC System RS485 RS422 Communication Module
Brand: Joyoung International Trading Co.,Ltd
SKU: X20CS1030
Price: 4,690.00 USD
Availability: InStock

Home Products B&R Automation Plc

X20CS1030 B&R X20 PLC System RS485 RS422 Communication Module

Product Details:

Place of Origin:	Austria
Brand Name:	B&R
Certification:	COC
Model Number:	X20CS1030

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	USD
Packaging Details:	Original
Delivery Time:	3-5 DAYS
Payment Terms:	T/T
Supply Ability:	10EA

Contact Now

Detailed Product Description

Product Brand:	B&R	Product Model:	X20CS1030
Product Type:	Communication Module	ID Code:	0x1FD0
Bus:	0.01 W	Internal I/O:	Internal I/O
Signal:	RS485/RS422	Warranty:	1 Year
Highlight:	X20CS1030 B&R X20 PLC , RS485 B&R X20 PLC System

X20CS1030 B&R X20 PLC System RS485/RS422 Communication Module

X20CS1030 B&R X20 PLC System RS485 RS422 Communication Module 0

MATERIAL NUMBER:

X20CS1030

DESCRIPTION:

RS485/RS422 interface for serial, remote connection of complex devices to the X20 system
Integrated terminating resistor

In addition to the standard I/O, complex devices often need to be connected. The X20CS communication modules are intended precisely for cases like this. As normal X20 electronics modules, they can be placed anywhere on the remote backplane.

Short description

Communication module	1x RS485/RS422

General information

B&R ID code	0x1FD0
Status indicators	Data transfer, terminating resistor, operating state, module status
Diagnostics
Module run/error	Yes, using LED status indicator and software
Data transfer	Yes, using LED status indicator
Terminating resistor	Yes, using LED status indicator
Power consumption
Bus	0.01 W
Internal I/O	1.44 W
Additional power dissipation caused by actuators (resistive) [W]	-
Certifications
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes
EAC	Yes
KC	Yes

Interfaces

Interface IF1
Signal	RS485/RS422
Variant	Connection made using 12-pin terminal block X20TB12
Number of stations	RS485: Maximum 32 stations RS422: Maximum 10 stations (receivers)
Max. distance	1200 m
Transfer rate	Max. 115.2 kbit/s
FIFO buffer	1 kB
Terminating resistor	Integrated in module
Controller	UART type 16C550 compatible

Electrical properties

Electrical isolation	RS485/RS422 (IF1) isolated from bus and I/O power supply

Operating conditions

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Horizontal mounting orientation	-25 to 60°C
Vertical mounting orientation	-25 to 50°C
Derating	See section "Derating".
Storage	-40 to 85°C
Transport	-40 to 85°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB06 or X20TB12 separately. Order 1x bus module X20BM11 separately.
Pitch	12.5+0.2mm
