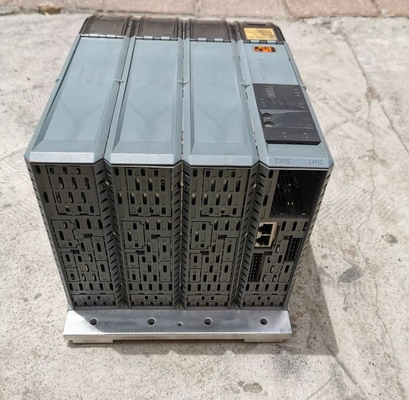

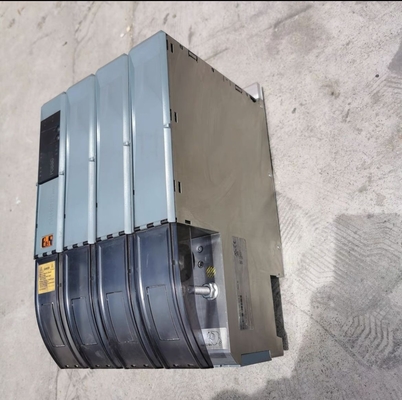

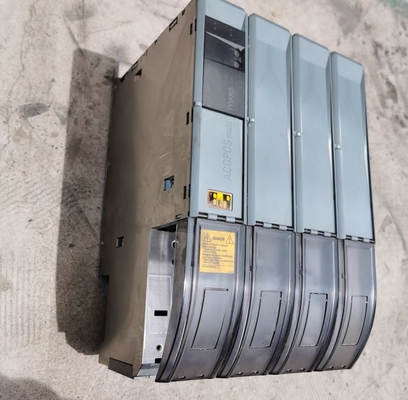

Name: 8BVP0880HC00.004-1 B&R PLC ACOPOSmulti Power Supply Module
Brand: Joyoung International Trading Co.,Ltd
SKU: 8BVP0880HC00.004-1
Price: 4,690.00 USD
Availability: InStock

Home Products B&R Automation Plc

8BVP0880HC00.004-1 B&R PLC ACOPOSmulti Power Supply Module

Product Details:

Place of Origin:	Austria
Brand Name:	B&R
Certification:	COC
Model Number:	8BVP0880HC00.004-1

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	USD
Packaging Details:	Original
Delivery Time:	3-5 DAYS
Payment Terms:	T/T
Supply Ability:	10EA

Contact Now

Detailed Product Description

Product Brand:	B&R	Product Model:	8BVP0880HC00.004-1
Product Type:	Power Supply	Input Voltage:	25 VDC ±1.6%
Output Voltage:	24 V +5.8% / -0.1%	Dimensions:	213.5317212mm
Weight:	Approx. 7.9 Kg	Warranty:	1 Year
Highlight:	8BVP0880HC00.004-1 , B&R PLC ACOPOSmulti Power Supply Module

8BVP0880HC00.004-1 B&R PLC ACOPOSmulti Power Supply Module

MATERIAL NUMBER:

8BVP0880HC00.004-1

DESCRIPTION:

Extensive input voltage range
Capable of regeneration
Integrated connection for temperature sensors
2 slots for ACOPOSmulti plug-in modules

ACOPOSmulti power supply module, 88 A, AS, cold plate or pass-through mounting

General information

B&R ID code	0xA6A1
Cooling and mounting type	Cold plate or pass-through mounting
Slots for plug-in modules	2
Certifications
CE	Yes
UL	cULus E225616 Power conversion equipment
EAC	Yes
KC	Yes

Mains connection

Network configurations	TT, TN-S, TN-C-S
Mains input voltage	3x 220 to 3x 480 VAC ±10%
Frequency	50 / 60 Hz ±4%
Installed load	Max. 62 kW
Inrush current at 400 VAC	Max. 133 A
Switch-on interval	>300 s
Max. DC bus capacitance depending on mains voltage
230 VAC	34.8 mF
400 VAC	11.5 mF
480 VAC	8 mF
Nominal switching frequency	5 kHz
Possible switching frequencies	5 / 10 kHz
Integrated line filter per EN 61800-3, category C3	No
Integrated regeneration choke	No
Regenerative	Yes
Power factor correction (PFC)	Yes
Variant
L1, L2, L3, PE	M8 threaded bolts
Shield connection	Yes
Connection cross section range
Flexible and fine-stranded wires	---
Terminal cable cross section dimension of shield connection	32 to 50 mm

DC bus connection

Voltage
Nominal	750 VDC
Continuous power (supply and regeneration)	60 kW
Reduction of continuous power depending on mains input voltage
Mains input voltage <3x 400 VAC	150 W/V * (400 V - Mains input voltage)
Reduction of continuous power depending on DC bus voltage (UDC)
UDC <750 VDC	0.08 kW/V
Reduction of continuous power depending on switching frequency and mounting type
Switching frequency 5 kHz
Cold plate mounting	1.3 kW/K (starting at 58°C)
Pass-through mounting	In preparation
Switching frequency 10 kHz
Cold plate mounting	0.95 kW/K (starting at 27°C)
Pass-through mounting	In preparation
Reduction of continuous power depending on installation elevation
Starting at 500 m above sea level	6 kW per 1000 m
Peak power (supply and regeneration)	120 kW
Power dissipation depending on switching frequency
Switching frequency 5 kHz	[0.065P²+11.4P+90] W
Switching frequency 10 kHz	[0.22P²+16.1P+185] W
DC bus capacitance	1650 µF
Protective measures
Overload protection	Yes
Short-circuit and ground fault protection	No
Variant	ACOPOSmulti backplane

24 VDC power supply

Input voltage	25 VDC ±1.6%
Input capacitance	4.7 µF
Max. power consumption	27 W + PSLOT1 + PSLOT2 + P24 V Out + PFan8BVF...
Variant	ACOPOSmulti backplane

24 VDC Out

Quantity	2
Output voltage
DC bus voltage (UDC): 260 to 315 VDC	25 VDC * (UDC / 315)
DC bus voltage (UDC): 315 to 800 VDC	24 VDC ±6%
Fuse protection	250 mA (slow-blow) electronic, automatic reset

Filter fan connection

Output voltage	24 V +5.8% / -0.1%
Continuous current	4.2 A
Max. overcurrent limiting	10 A
Protective measures
Overload protection	No
Short-circuit proof	Yes
Open-circuit monitoring	No
Undervoltage monitoring	No

Trigger inputs

Quantity	2
Circuit	Sink
Electrical isolation
Input - Power supply module	Yes
Input - Input	Yes
Input voltage
Nominal	24 VDC
Maximum	30 VDC
Switching threshold
Low	<5 V
High	>15 V
Input current at nominal voltage	Approx. 10 mA
Switching delay
Rising edge	52 μs ±0.5 μs (digitally filtered)
Falling edge	53 μs ±0.5 μs (digitally filtered)
Modulation compared to ground potential	Max. ±38 V

Electrical properties

Discharge capacitance	0.9 µF

Operating conditions

Permissible mounting orientations
Hanging vertically	Yes
Horizontal, face up	Yes
Standing horizontally	No
Installation elevation above sea level
Nominal	0 to 500 m
Maximum	4000 m
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Nominal	5 to 40°C
Maximum	55°C
Storage	-25 to 55°C
Transport	-25 to 70°C
Relative humidity
Operation	5 to 85%
Storage	5 to 95%
Transport	Max. 95% at 40°C

Mechanical properties

Dimensions
Width	213.5 mm
Height	317 mm
Depth
Cold plate	212 mm
Pass-through mounting	209 mm
Weight	Approx. 7.9 kg
Module width	4
