Name: X20TB12 B&R X20 24 VDC Modules Wired with X20TB06 And X20TB12 Terminal Blocks
Brand: Joyoung International Trading Co.,Ltd
SKU: X20TB12
Price: 4,690.00 USD
Availability: InStock

Home Products B&R Automation Plc

X20TB12 B&R X20 24 VDC Modules Wired with X20TB06 And X20TB12 Terminal Blocks

Product Details:

Place of Origin:	Austria
Brand Name:	B&R
Certification:	COC
Model Number:	X20TB12

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	USD
Packaging Details:	Original
Delivery Time:	3-5 days
Payment Terms:	T/T
Supply Ability:	10EA

Contact Now

Detailed Product Description

Product Name:

B&R

Product Model:

X20TB12

Product Type:

Terminal Blocks

Warranty:

1 Year

Highlight:

B&R X20 24 VDC Modules

X20TB12 B&R X20

X20TB12 Terminal Blocks B&R Modules

X20TB12 B&R X20 24 VDC Modules Are Wired Using The X20TB06 And X20TB12 Terminal Blocks

MATERIAL NUMBER:

X20TB12

DESCRIPTION:

Tool-free wiring with push-in technology
Simple wire release using lever
Ability to label each terminal
Plain text labeling also possible
Test access for standard probes
Can be customer-coded

The X20 24 VDC modules are wired using the X20TB06 and X20TB12 terminal blocks.

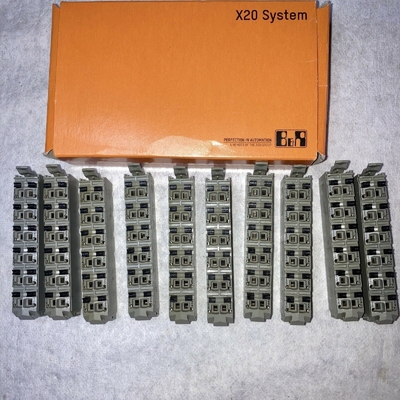

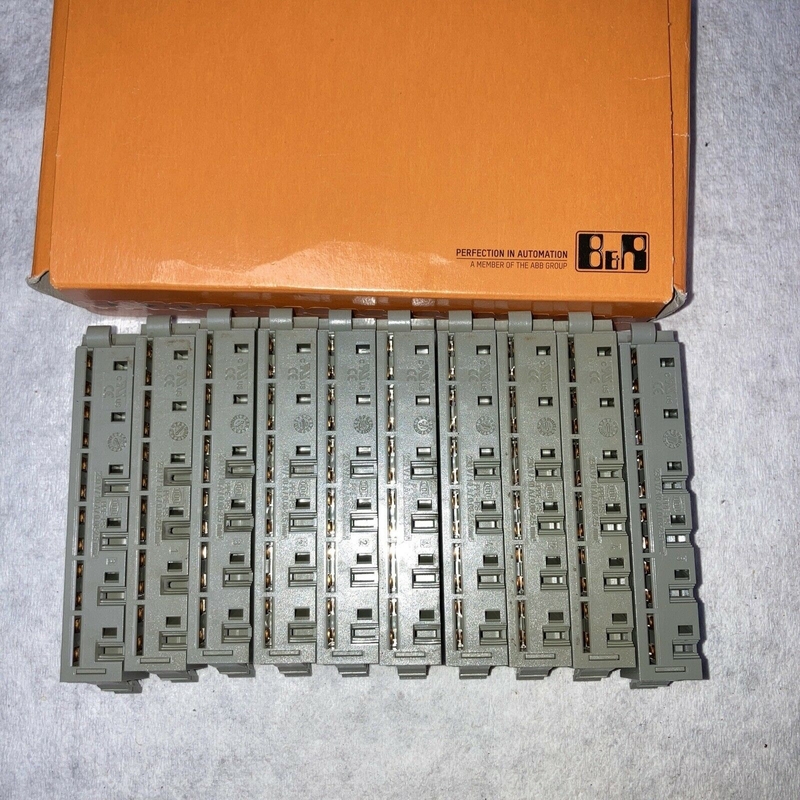

X20TB12 B&R X20 24 VDC Modules Wired with X20TB06 And X20TB12 Terminal Blocks 0

General information

Certifications
CE	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
DNV	Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes

Terminal block

Number of pins	12
Type of terminal block	Push-in terminal
Push-in force per contact	Typ. 10 N
Cable type	Only copper wires (no aluminum wires!)
Wire stripping length	7 to 9 mm
Connection cross section
Solid wires	0.08 to 2.50 mm² / 28 to 14 AWG
Fine-stranded wires	0.25 to 2.50 mm² / 24 to 14 AWG
With wire end sleeves	0.25 to 1.50 mm² / 24 to 16 AWG
With double wire end sleeves	Up to 2x 0.75 mm²
Distance between contacts
Left - Right	4.2 mm
Above - Below	10.96 mm

Electrical properties

Nominal voltage	240 VAC / 48 VDC
Max. voltage	300 VAC / 60 VDC
Nominal current	10 A / contact
Contact resistance	≤5 mΩ

Ambient conditions

Temperature
Operation	Corresponds to the X20 module used
Relative humidity
Operation	Corresponds to the X20 module used
