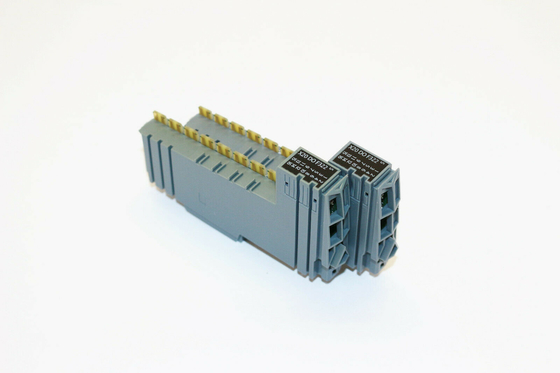

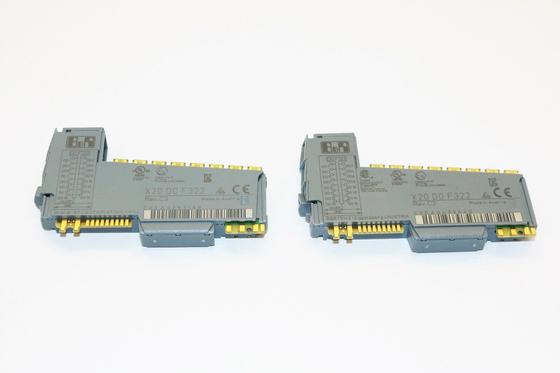

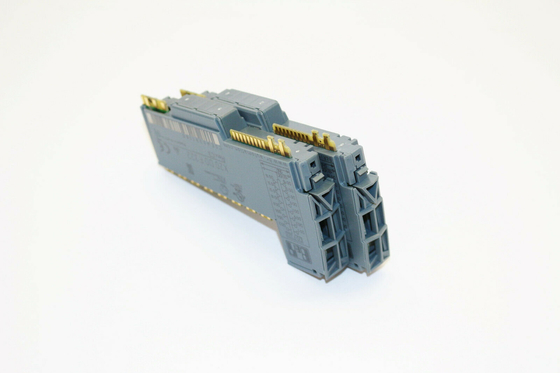

Name: X20DOF322 B&R X20 PLC SYSTEM I/O Module 16 Digital Outputs 24 VDC For 1 Wire Connections
Brand: Joyoung International Trading Co.,Ltd
SKU: X20DOF322
Price: 4,690.00 USD
Availability: InStock

Home Products B&R Automation Plc

X20DOF322 B&R X20 PLC SYSTEM I/O Module 16 Digital Outputs 24 VDC For 1 Wire Connections

Product Details:

Place of Origin:	Austria
Brand Name:	B&R
Certification:	COC
Model Number:	X20DOF322

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	USD
Delivery Time:	3-5 DAYS
Payment Terms:	T/T
Supply Ability:	10EA

Contact Now

Detailed Product Description

Product Name:	B&R	Product Model:	X20DOF322
Product Type:	I/O Module	ID Code:	0xC0EA
Input Voltage:	24 VDC -15% / +20%	Warranty:	1 Year
Highlight:	X20DOF322 B&R X20 PLC , B&R X20 PLC SYSTEM I/O Module , 16 Digital Outputs B&R Automation Plc

X20DOF322 B&R X20 PLC SYSTEM I/O Module 16 Digital Outputs 24 VDC For 1-Wire Connections

MATERIAL NUMBER:

X20DOF322

DESCRIPTION:

16 digital outputs
Source connection
1-wire connections
Integrated output protection

The module is equipped with 16 outputs for 1-wire connections. The module is designed for source output wiring.

Short description

I/O module	16 digital outputs 24 VDC for 1-wire connections

General information

B&R ID code	0xC0EA
Status indicators	I/O function per channel, operating state, module status
Diagnostics
Module run/error	Yes, using LED status indicator and software
Outputs	Yes, using LED status indicator and software (output error status)
Power consumption
Bus	0.28 W
Internal I/O	0.95 W
Additional power dissipation caused by actuators (resistive) [W]	+0.56 W
Certifications
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes
EAC	Yes
KC	Yes

Digital outputs

Variant	Current-sourcing FET
Nominal voltage	24 VDC
Switching voltage	24 VDC -15% / +20%
Nominal output current	0.5 A
Total nominal current	8 A
Connection type	1-wire connections
Output circuit	Source
Output protection	Thermal shutdown in the event of overcurrent or short circuit (see value "Short-circuit peak current") Internal freewheeling diode for switching inductive loads (see section "Switching inductive loads")
Diagnostic status	Output monitoring with 10 ms delay
Leakage current when the output is switched off	5 µA
RDS(on)	140 mΩ
Peak short-circuit current	<3 A
Switch-on in the event of overload shutdown or short-circuit shutdown	Approx. 10 ms (depends on the module temperature)
Switching delay
0 → 1	<300 µs
1 → 0	<300 µs
Switching frequency
Resistive load	Max. 500 Hz
Inductive load	See section "Switching inductive loads".
Braking voltage when switching off inductive loads	Typ. 45 VDC
Insulation voltage between channel and bus	500 Veff

Electrical properties

Electrical isolation	Channel isolated from bus Channel not isolated from channel and I/O power supply

Operating conditions

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Horizontal mounting orientation	-25 to 60°C
Vertical mounting orientation	-25 to 50°C
Derating	See section "Derating".
Storage	-40 to 85°C
Transport	-40 to 85°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB1F separately. Order 1x bus module X20BM11 separately.
Pitch	12.5+0.2mm

X20DOF322 B&R X20 PLC SYSTEM I/O Module 16 Digital Outputs 24 VDC For 1 Wire Connections 0
