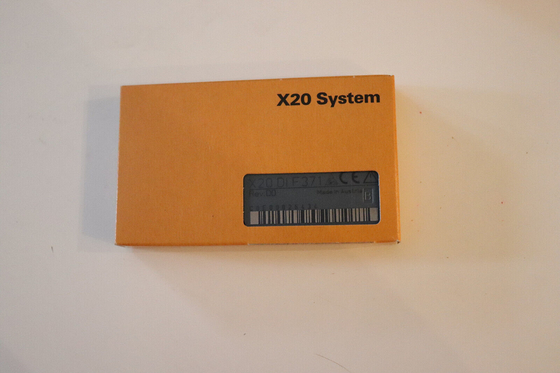

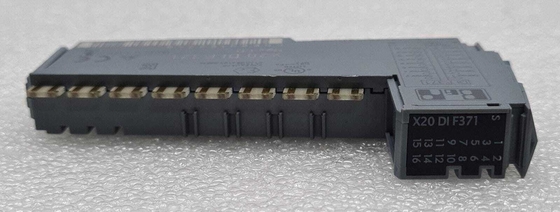

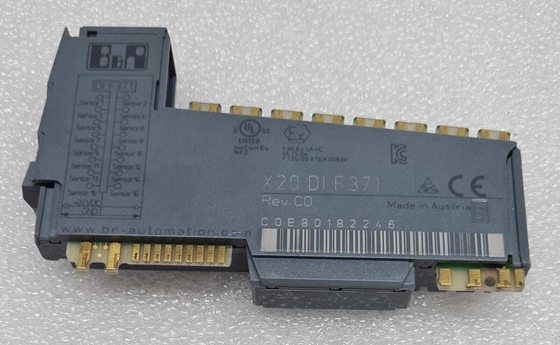

Name: X20DIF371 B&R X20 PLC SYSTEM I/O Module 16 Digital Inputs 24 VDC For 1 Wire Connections
Brand: Joyoung International Trading Co.,Ltd
SKU: X20DIF371
Price: 4,690.00 USD
Availability: InStock

Home Products B&R Automation Plc

X20DIF371 B&R X20 PLC SYSTEM I/O Module 16 Digital Inputs 24 VDC For 1 Wire Connections

Product Details:

Place of Origin:	Austria
Brand Name:	B&R
Certification:	COC
Model Number:	X20DIF371

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	USD
Delivery Time:	3-5 DAYS
Payment Terms:	T/T
Supply Ability:	10EA

Contact Now

Detailed Product Description

Product Name:	B&R	Product Model:	X20DIF371
Product Type:	I/O Module	ID Code:	0xC0E8
Input Voltage:	24 VDC -15% / +20%	Warranty:	1 Year
Highlight:	B&R X20 PLC SYSTEM I/O Module , 24VDC B&R X20 PLC , 1 Wire Connections B&R Automation Plc

X20DIF371 B&R X20 PLC SYSTEM I/O Module 16 Digital Inputs 24 VDC For 1-Wire Connections

MATERIAL NUMBER:

X20DIF371

DESCRIPTION:

16 digital inputs
Source circuit
1-wire connections
Configurable software input filter for entire module

The module is equipped with 16 inputs for 1-wire connections. The module is designed for sink input wiring.

Short description

I/O module	16 digital inputs 24 VDC for 1-wire connections

General information

B&R ID code	0xC0E8
Status indicators	I/O function per channel, operating state, module status
Diagnostics
Module run/error	Yes, using LED status indicator and software
Power consumption
Bus	0.18 W
Internal I/O	1.47 W
Additional power dissipation caused by actuators (resistive) [W]	-
Certifications
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes
EAC	Yes
KC	Yes

Digital inputs

Nominal voltage	24 VDC
Input characteristics per EN 61131-2	Type 1
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC	Typ. 2.68 mA
Input circuit	Sink
Input filter
Hardware	≤100 μs
Software	Default 1 ms, configurable between 0 and 25 ms in 0.2 ms increments
Connection type	1-wire connections
Input resistance	Typ. 8.9 kΩ
Simultaneity
With 24 V I/O power supply	100% (16 channels)
With 28.8 V I/O power supply	75% (12 channels)
Switching threshold
Low	<5 VDC
High	>15 VDC
Insulation voltage between channel and bus	500 Veff

Electrical properties

Electrical isolation	Channel isolated from bus Channel not isolated from channel

Operating conditions

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Horizontal mounting orientation	-25 to 60°C
Vertical mounting orientation	-25 to 50°C
Derating	See section "Derating".
Storage	-40 to 85°C
Transport	-40 to 85°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB1F separately. Order 1x bus module X20BM11 separately.
Pitch	12.5+0.2mm
