Name: X20SI4100 B&R X20 PLC SYSTEM I/O Module 4 Type A Digital Inputs 4 Pulse Outputs 24 VDC
Brand: Joyoung International Trading Co.,Ltd
SKU: X20SI4100
Price: 4,690.00 USD
Availability: InStock

Home Products B&R Automation Plc

X20SI4100 B&R X20 PLC SYSTEM I/O Module 4 Type A Digital Inputs 4 Pulse Outputs 24 VDC

Product Details:

Place of Origin:	Austria
Brand Name:	B&R
Certification:	COC
Model Number:	X20SI4100

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	USD
Delivery Time:	3-5 DAYS
Payment Terms:	T/T
Supply Ability:	10EA

Contact Now

Detailed Product Description

Product Name:	B&R	Product Model:	X20SI4100
Product Type:	I/O Module	ID Code:	0x1DBD
Function:	Module Functionality	Internal I/O:	1.25 W
Voltage Range:	24 VDC -15% / +20%	Warranty:	1 Year
Highlight:	X20SI4100 B&R X20 PLC , B&R X20 PLC 24VDC , 4 Pulse Outputs B&R Automation Plc

X20SI4100 B&R X20 PLC SYSTEM I/O Module 4 Safe Type A Digital Inputs, 4 Pulse Outputs, 24 VDC

MATERIAL NUMBER:

X20SI4100

DESCRIPTION:

4 safe digital inputs
4 pulse outputs
Sink circuit
Software input filter configurable for each channel

This module is equipped with 4 safe digital inputs. It is designed for a nominal voltage of 24 VDC.

The module can be used to read various digital signals in safety-related applications up to PL e or SIL 3.

The module is equipped with filters that are individually configurable for switch-on and switch-off behavior. The module also provides pulse signals for diagnosing the sensor line.

This module is designed for X20 12-pin terminal blocks.

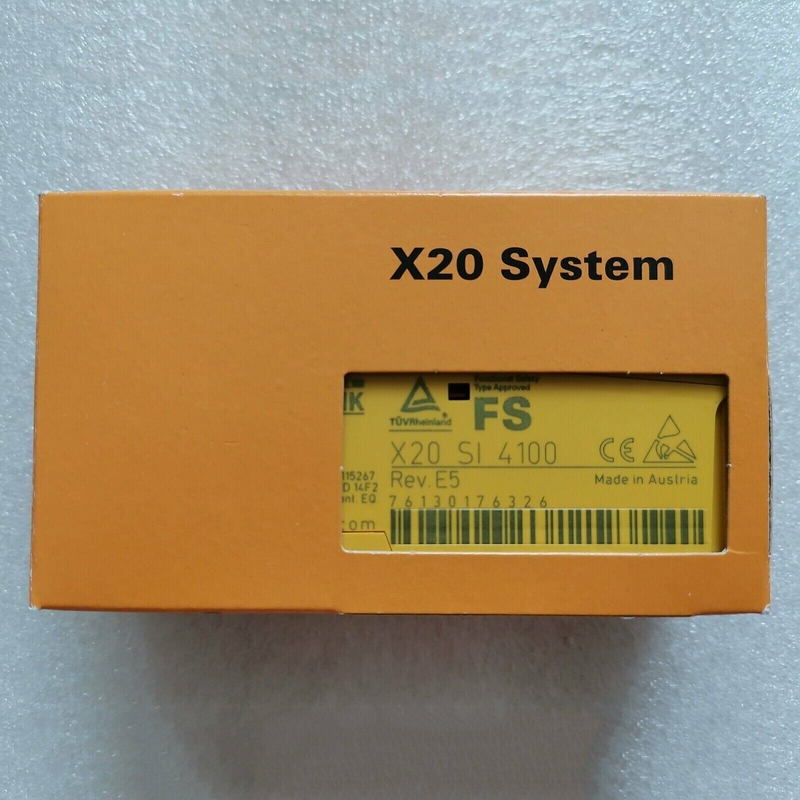

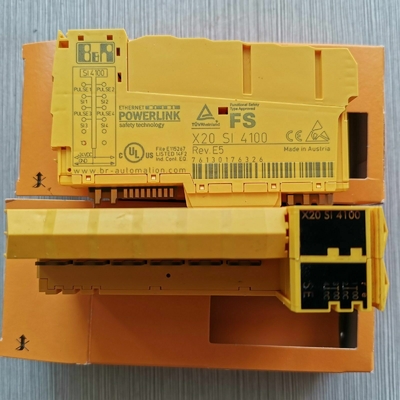

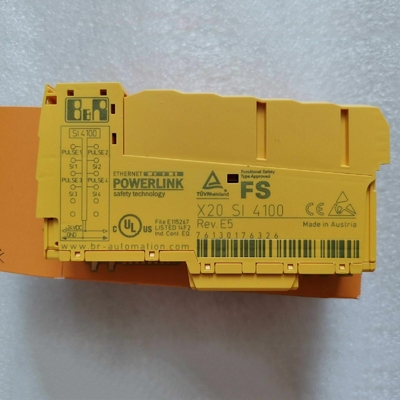

X20SI4100 B&R X20 PLC SYSTEM I/O Module 4 Type A Digital Inputs 4 Pulse Outputs 24 VDC 0

Short description

I/O module	4 safe type A digital inputs, 4 pulse outputs, 24 VDC

General information

B&R ID code	0x1DBD
System requirements
Automation Studio	3.0.71 or later
Automation Runtime	2.95 or later
SafeDESIGNER	2.58 or later
Safety Release	1.1 or later
mapp Technology Package	mapp Safety 5.7.0 or later
Status indicators	I/O function per channel, operating state, module status
Diagnostics
Module run/error	Yes, using LED status indicator and software
Inputs	Yes, using LED status indicator and software
Blackout mode
Scope	Module
Function	Module functionality
Standalone mode	No
Max. I/O cycle time	800 µs
Power consumption
Bus	0.32 W
Internal I/O	1.25 W
Additional power dissipation caused by actuators (resistive) [W]	0.6
Electrical isolation
Channel - Bus	Yes
Channel - Channel	No
Certifications
CE	Yes
Functional safety	cULus FSPC E361559 Energy and industrial systems Certified for functional safety ANSI UL 1998:2013
Functional safety	IEC 61508:2010, SIL 3 EN 62061:2013, SIL 3 EN ISO 13849-1:2015, Cat. 4 / PL e IEC 61511:2004, SIL 3
Functional safety	EN 50156-1:2004
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: A(0 - 45°C) Humidity: B(up to 100%) Vibration: A(0.7 g) EMC: B(bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes
EAC	Yes
KC	Yes

Safety characteristics

EN ISO 13849-1:2015
Category	Cat. 3 when using individual input channels, Cat. 4 when using input channel pairs (e.g. SI1 and SI2) or more than 2 input channels
PL	PL e
DC	>94%
MTTFD	2500 years
Mission time	Max. 20 years
IEC 61508:2010, IEC 61511:2004, EN 62061:2013
SIL CL	SIL 3
SFF	>90%
PFH / PFHd
Per channel	<1*10-10
openSAFETY wired	Negligible
openSAFETY wireless	<110-14 Number of openSAFETY packets per hour
PFD	<2*10-5
Proof test interval (PT)	20 years

I/O power supply

Nominal voltage	24 VDC
Voltage range	24 VDC -15% / +20%
Integrated protection	Reverse polarity protection

Safe digital inputs

Quantity	4
Variant	Type A
Nominal voltage	24 VDC
Input characteristics per EN 61131-2	Type 1
Input filter
Hardware	≤150 μs
Software	Configurable between 0 and 500 ms
Input circuit	Sink
Input voltage	24 VDC -15% / +20%
Input current at 24 VDC	Min. 2 mA to max. 4.59 mA. Hardware revision J0 and later: Min. 2 mA to max. 3.28 mA.
Input resistance	Min. 5.23 kΩ, hardware revision J0 and later: Min. 7.33 kΩ
Error detection time	100 ms
Insulation voltage between channel and bus	500 Veff
Switching threshold
Low	<5 VDC
High	>15 VDC
Line length between signal source (pulse output or external signal) and input	Max. 60 m with unshielded line Max. 400 m with shielded line

Pulse outputs

Quantity	4
Variant	Push-Pull
Nominal output current	100 mA, hardware revision J0 and later: 50 mA
Output protection	Thermal shutdown of all channels in the event of overload or short circuit, hardware revision J0 and later: Shutdown of individual channels in the event of overload or short circuit
Peak short-circuit current	300 mA, hardware revision J0 and later: 25 A for 15 µs
Short-circuit current	100 mAeff
Leakage current when the output is switched off	0.1 mA
RDS(on)	60 Ω
Switching voltage	I/O power supply minus voltage drop due to RDS(on)
Total nominal current	400 mA, hardware revision J0 and later: 200 mA

Operating conditions

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level	0 to 2000 m, no limitation
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Horizontal mounting orientation	0 to 60°C
Vertical mounting orientation	0 to 50°C
Derating	See section "Derating".
Storage	-40 to 85°C
Transport	-40 to 85°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x safety-keyed terminal block separately. Order 1x safety-keyed bus module separately.
Pitch	25+0.2mm
