X20AO4622 B&R X20 System PLC I/O Module 4 Analog Outputs ±10 V Or 0 To 20 MA / 4 To 20 MA

Product Details:

Place of Origin:	Austria
Brand Name:	B&R
Certification:	COC
Model Number:	X20AO4622

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	USD
Packaging Details:	Original
Delivery Time:	3-5 DAYS
Payment Terms:	T/T
Supply Ability:	10EA

Contact Now

Detailed Product Description

Product Name:	B&R	Product Model:	X20AO4622
Product Type:	I/O Module	ID Code:	0x1BA3
Internal I/O:	1.8 W (Rev. ≥ J0), 2.2 W (Rev. < J0)	Warranty:	1 Year
Highlight:	B&R X20 System PLC , X20AO4622 , BR X20 System PLC I/O Module

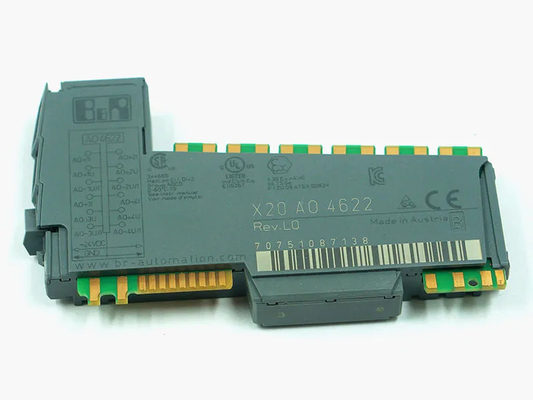

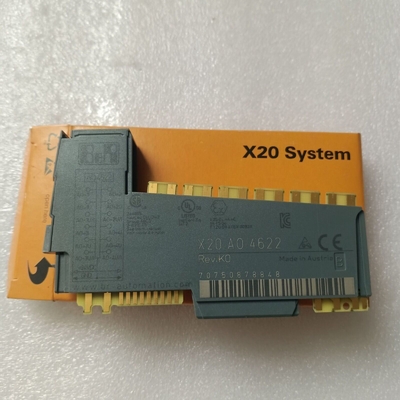

X20AO4622 B&R X20 System PLC I/O Module 4 Analog Outputs ±10 V Or 0 To 20 MA / 4 To 20 MA 0

MATERIAL NUMBER:

X20AO4622

DESCRIPTION:

4 analog outputs
Either current or voltage signal possible
13-bit digital converter resolution

X20 analog output module, 4 outputs, 10 V or 0 to 20 mA / 4 to 20 mA, 13-bit converter resolution

General information

B&R ID code	0x1BA3
Status indicators	I/O function per channel, operating state, module status
Diagnostics
Module run/error	Yes, using LED status indicator and software
Channel type	Yes, using software
Power consumption
Bus	0.01 W
Internal I/O	1.8 W (Rev. ≥ J0), 2.2 W (Rev. < J0)
Additional power dissipation caused by actuators (resistive) [W]	-
Certifications
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes
EAC	Yes
KC	Yes

Analog outputs

Output	±10 V or 0 to 20 mA / 4 to 20 mA, via different terminals
Max. output current	10 mA at voltage >5 V 15 mA at voltage <5 V
Digital converter resolution
Voltage	±12-bit
Current	12-bit
Conversion time	300 µs for all outputs
Settling time on output change over entire range	500 µs
Switch on/off behavior	Internal enable relay for startup
Max. error
Voltage
Gain	0.08%
Offset	0.05%
Current
Gain	0.09%
Offset	0.05%
Output protection	Short-circuit proof
Output format
Voltage	INT 0x8001 - 0x7FFF / 1 LSB = 0x0008 = 2.441 mV
Current	INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 µA
Load per channel
Voltage	Max. ±10 mA, load ≥1 kΩ
Current	Load max. 600 Ω (Rev. ≥ J0), 500 Ω (Rev. < J0)
Short-circuit proof	Current limiting ±40 mA
Output filter	First-order low-pass filter / cutoff frequency 10 kHz
Max. gain drift
Voltage	0.015%/°C
Current	0.02 %/°C
Max. offset drift
Voltage	0.032%/°C
Current	0.032%/°C
Error caused by load change
Voltage	Max. 0.11%, from 10 MΩ → 1 kΩ, resistive
Current	Max. 0.5%, from 1 Ω → 600 Ω, resistive
Nonlinearity	<0.007%
Insulation voltage between channel and bus	500 Veff

Electrical properties

Electrical isolation	Channel isolated from bus Channel not isolated from channel

Operating conditions

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Horizontal mounting orientation	-25 to 60°C (Rev. ≥ J0), 0 to 55°C (Rev. < J0)
Vertical mounting orientation	-25 to 50°C (Rev. ≥ J0), 0 to 50°C (Rev. < J0)
Derating	See section "Derating".
Storage	-40 to 85°C
Transport	-40 to 85°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing
