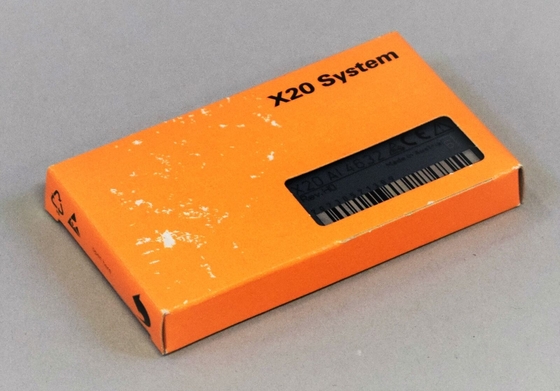

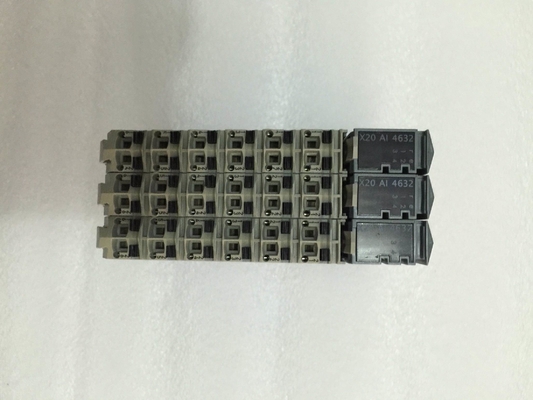

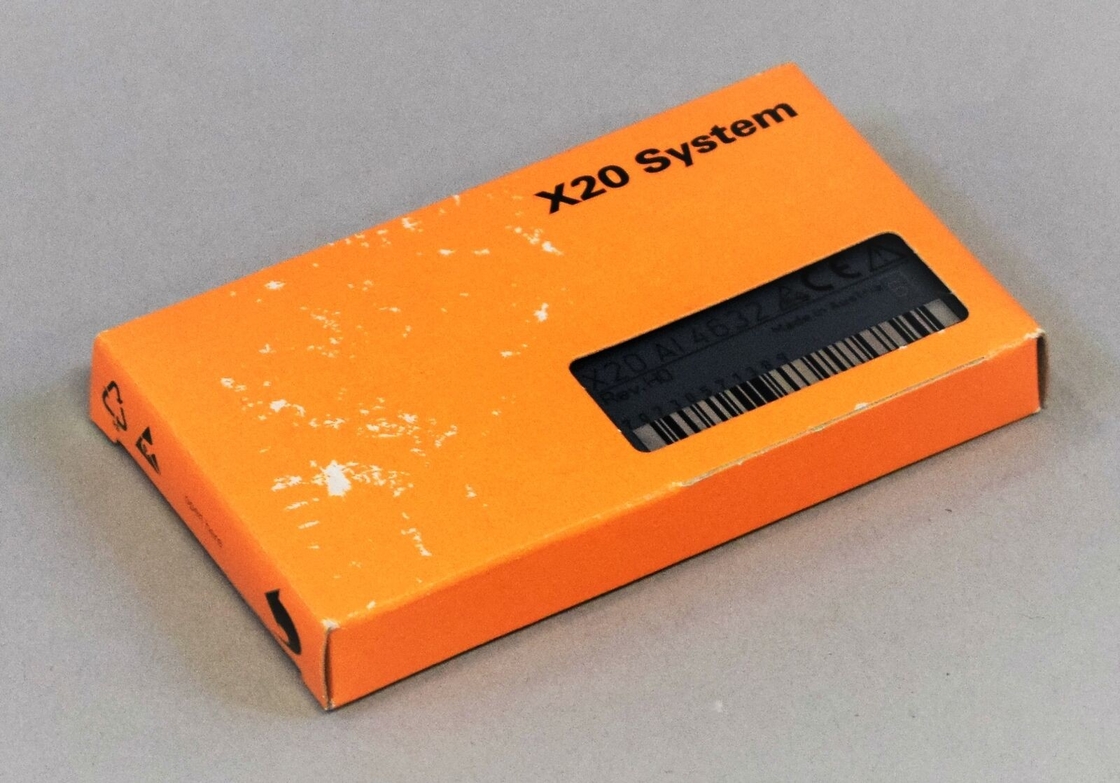

Name: X20AI4632 B&R X20 System PLC I/O Module 4 Analog Inputs ±10 V Or 0 To 20 MA
Brand: Joyoung International Trading Co.,Ltd
SKU: X20AI4632
Price: 4,690.00 USD
Availability: InStock

Home Products B&R Automation Plc

X20AI4632 B&R X20 System PLC I/O Module 4 Analog Inputs ±10 V Or 0 To 20 MA

Product Details:

Place of Origin:	Austria
Brand Name:	B&R
Certification:	COC
Model Number:	X20AI4632

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	USD
Packaging Details:	Original
Delivery Time:	3-5 DAYS
Payment Terms:	T/T
Supply Ability:	10EA

Contact Now

Detailed Product Description

Product Name:	B&R	Product Model:	X20AI4632
Product Type:	I/O Module	Bus:	0.01 W
Internal I/O:	1.5 W	Warranty:	1 Year
Highlight:	X20AI4632 , 20MA B&R X20 System PLC , BR PLC I/O Module

X20AI4632 B&R X20 System PLC I/O Module 4 Analog Inputs ±10 V Or 0 To 20 MA 0

MATERIAL NUMBER:

X20AI4632

DESCRIPTION:

4 analog inputs
Either current or voltage signal possible
16-bit digital converter resolution
Simultaneous input conversion
Very fast conversion time

The module is equipped with 4 inputs with 16-bit digital converter resolution. It is possible to select between the current and voltage signal using different terminals.

General information

B&R ID code	0x1BA1
Status indicators	I/O function per channel, operating state, module status
Diagnostics
Module run/error	Yes, using LED status indicator and software
Inputs	Yes, using LED status indicator and software
Channel type	Yes, using software
Power consumption
Bus	0.01 W
Internal I/O	1.5 W
Additional power dissipation caused by actuators (resistive) [W]	-
Certifications
CE	Yes
UKCA	Yes
ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
UL	cULus E115267 Industrial control equipment
HazLoc	cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
DNV	Temperature: B(0 - 55°C) Humidity: B(up to 100%) Vibration: B(4 g) EMC: B(bridge and open deck)
LR	ENV1
KR	Yes
ABS	Yes
EAC	Yes
KC	Yes

Analog inputs

Input	±10 V or 0 to 20 mA, via different terminal connections
Input type	Differential input
Digital converter resolution
Voltage	±15-bit
Current	15-bit
Conversion time	50 μs for all inputs
Output format	INT
Output format
Voltage	INT 0x8001 - 0x7FFF / 1 LSB = 0x0001 = 305.176 µV
Current	INT 0x0000 - 0x7FFF / 1 LSB = 0x0001 = 610.352 nA
Input impedance in signal range
Voltage	20 MΩ
Current	-
Load
Voltage	-
Current	<400 Ω
Input protection	Protection against wiring with supply voltage
Permissible input signal
Voltage	Max. ±30 V
Current	Max. ±50 mA
Output of digital value during overload
Undershoot
Voltage	0x8001
Current	0x0000
Overshoot
Voltage	0x7FFF
Current	0x7FFF
Conversion procedure	SAR
Input filter	Hardware - Third-order low-pass filter / cutoff frequency 10 kHz
Max. error
Voltage
Gain	0.08%
Offset	0.01%
Current
Gain	0.08%
Offset	0.02%
Max. gain drift
Voltage	0.01%/°C
Current	0.01%/°C
Max. offset drift
Voltage	0.001%/°C
Current	0.002%/°C
Common-mode rejection
DC	70 dB
50 Hz	70 dB
Common-mode range	±12 V
Crosstalk between channels	<-70 dB
Nonlinearity
Voltage	<0.01%
Current	<0.015%
Insulation voltage between channel and bus	500 Veff

Electrical properties

Electrical isolation	Channel isolated from bus Channel not isolated from channel

Operating conditions

Mounting orientation
Horizontal	Yes
Vertical	Yes
Installation elevation above sea level
0 to 2000 m	No limitation
>2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature
Operation
Horizontal mounting orientation	-25 to 60°C
Vertical mounting orientation	-25 to 50°C
Derating	See section "Derating".
Storage	-40 to 85°C
Transport	-40 to 85°C
Relative humidity
Operation	5 to 95%, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately. Order 1x bus module X20BM11 separately.
Pitch	12.5+0.2mm
