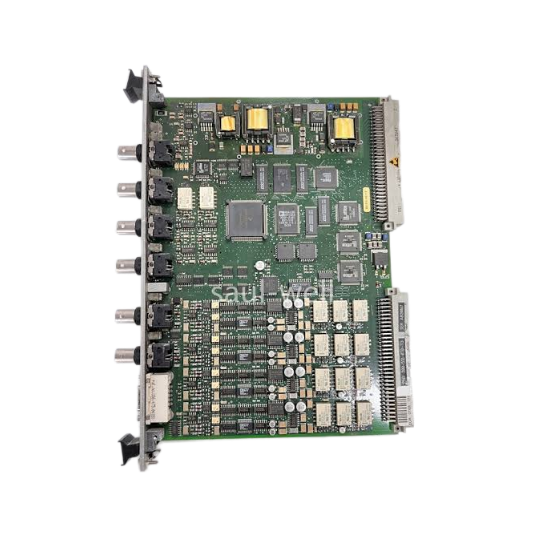

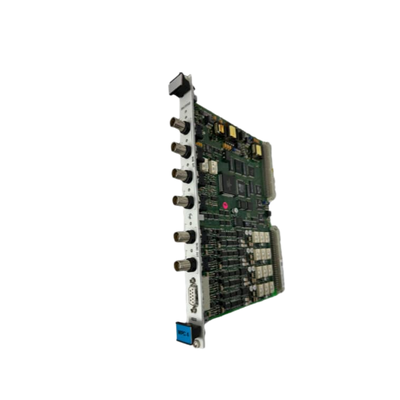

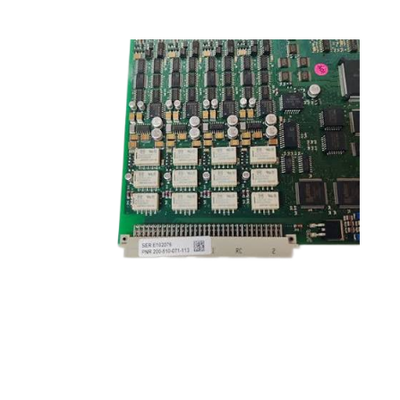

MPC4 200-510-071-113 Machinery Protection Card for Rotating Machinery

The MPC4 200-510-071-113 is an insertable processing card designed for condition monitoring of rotating machinery. It is typically installed in a standard rack and operates in conjunction with the corresponding interface module. The card connects to on-site sensors such as accelerometers, speed sensors, or eddy current probes to continuously collect and digitally process vibration, displacement, and speed signals from the equipment.

The 200-510-071-113 employs digital signal processing technology at the signal processing level. It performs filtering, integration, or differentiation operations on the original waveform and extracts key characteristic values such as amplitude and phase. With multi-channel synchronous processing capability, it can simultaneously manage multiple dynamic measurement points and speed reference points, meeting the monitoring requirements of complex units.

The 200-510-071-113 supports plug-and-play functionality, allowing replacement or debugging while the rack is powered on and the system is running, thereby reducing downtime caused by maintenance. Its configuration parameters are typically stored in non-volatile memory, so after replacing the card, the system can resume operation without complex reconfiguration settings.
