Name: DS200TBQAG1A GE Thermocouple Termination Board For Speedtronic Mark V
Brand: Joyoung International Trading Co.,Ltd
SKU: DS200TBQAG1A
Price: 1000 USD
Availability: InStock

Home Products GE Fanuc PLC

DS200TBQAG1A GE Thermocouple Termination Board For Speedtronic Mark V

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	CO
Model Number:	DS200TBQAG1A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	1000
Packaging Details:	6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	10pcs

Contact Now

Detailed Product Description

Shipping Port:	Xiamen	Lead Time:	5-8 Work Days
Country Of Origin/Original Country:	United States (USA)	Condition:	New
Color:	Depends On Material	Courier Partners:	DHL, UPS, TNT, FedEx And EMS
Packing Size:	6.4" X 6.4" X 4.8" (16cm X 16 Cm X 12 Cm)	Warranty:	12 Months
Brand Name:	GE	Sales Price:	Inquiry
Gross Weight/Shipping Weight:	2.2 Lbs / 35.2 Oz / 1kg	Model:	DS200TBQAG1A
Lead Time:	In Stock	Payment:	T/T
Highlight:	GE Thermocouple Termination Board , Speedtronic Mark V Termination Board , DS200TBQAG1A Thermocouple Board

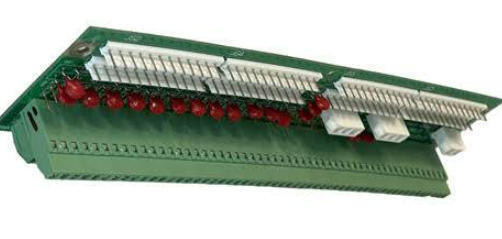

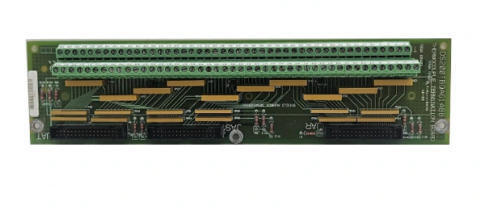

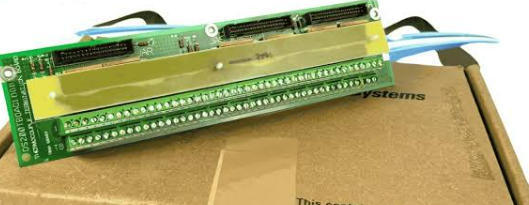

DS200TBQAG1A GE Thermocouple Termination Board For Speedtronic Mark V

The DS200TBQAG1A is a thermocouple wiring terminal board designed for the GE Mark V series programmable controller. It collects thermocouple signals from the field and safely transmits them to the processing core module of the Mark V control system.

Product Specifications

Brand Name	GE
Model	DS200TBQAG1A
Origin	United States (USA)
HS Code	8537101190
Payment	T/T

Compatible Components

N/M	N/M
330730-080-00-00	IS210SCLSH1A
DSTF620	AO610 3BHT300008R1
CMA123 3DDE300403	IQS450 204-450-000-002 A1-B23-H05-I0

Product Advantages

Cold junction temperature compensation circuit corrects environmental temperature changes at connection terminals, significantly reducing errors caused by temperature drift
Integrated filtering network and decoupling design enhance accuracy and stability of temperature acquisition
Effective resistance against common electromagnetic interference in industrial environments
High channel density and anti-interference capability
Deep compatibility with Mark V TMR redundant architecture

Technical Support

Q: If there is a significant deviation in temperature measurement, where should we prioritize checking?

A: Please conduct the checks in the following order:

Cold end compensation (CJC) sensor: Check whether the onboard cold end compensation element or its sampling channel is functioning properly
Termination settings: Verify that the jumpers on the board match the actual type of thermocouple being connected
Cabling and Grounding: Verify whether the thermocouple shielding wire is properly grounded at a single point on the terminal board in accordance with the specifications, and check for any ground current or poor contact
