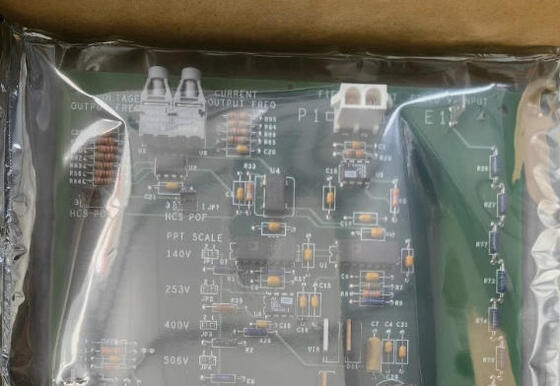

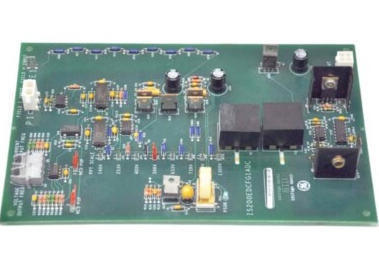

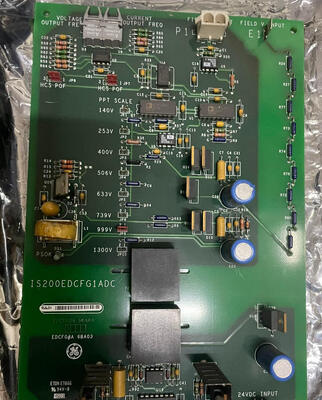

Name: IS200EDCFG1A GE Exciter DC Feedback Board Speedtronic Turbine Controller
Brand: Joyoung International Trading Co.,Ltd
SKU: IS200EDCFG1A
Price: 3000 USD
Availability: InStock

Home Products GE Fanuc PLC

IS200EDCFG1A GE Exciter DC Feedback Board Speedtronic Turbine Controller

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	CO
Model Number:	IS200EDCFG1A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	3000
Packaging Details:	6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	10pcs

Contact Now

Detailed Product Description

Payment:	T/T	Model:	IS200EDCFG1A
Lead Time:	5-8 Work Days	Lead Time:	In Stock
Shipping Port:	Xiamen	Warranty:	12 Months
Color:	Depends On Material	Gross Weight/Shipping Weight:	2.2 Lbs / 35.2 Oz / 1kg
Country Of Origin/Original Country:	United States (USA)	Condition:	New
Packing Size:	6.4" X 6.4" X 4.8" (16cm X 16 Cm X 12 Cm)	Sales Price:	Inquiry
Courier Partners:	DHL, UPS, TNT, FedEx And EMS	Brand Name:	GE

IS200EDCFG1A GE Exciter DC Feedback Board Speedtronic Turbine Controller

The IS200EDCFG1A is a DC feedback terminal board for the GE exciter machine specifically designed for the EX2100 excitation control system. It plays a crucial role in collecting and isolating physical signals in power plant and heavy industry generator excitation systems, and is mainly used for accurately measuring the excitation voltage and current output by the silicon rectifier bridge.

Product Specifications

Brand Name	GE
Model	IS200EDCFG1A
Origin	United States (USA)
HS Code	8537101190
Payment	T/T

Additional Information

N/M	N/M
PR6424/000-030	IC200CHS022
7400211-310	KJ3221X1-BA1
8200-1302	IQS450 204-450-000-002 A1-B23-H05-I0

Product Advantages

High anti-interference capability
Electrical safety isolation
High-precision sampling
Flexible deployment
Industrial-grade reliability

Using all-fiber transmission, it completely cuts off the electrical connection between the high-voltage excitation circuit and the control system, avoiding interference from the strong electromagnetic field in the power plant and preventing the high-voltage from breaking the controller. At the same time, it provides high-speed feedback for the PID regulation and limit protection of the controller.

Q: What are the main indicator lights on the IS200EDCFG1A board and what do they indicate?

A: There is only one green indicator light, PSOK, on the board. When a 24 VDC external power supply is connected and the internal step-up/down voltage regulation circuit outputs a stable operating voltage, this LED light will illuminate, indicating that the power system of the board is normal.
