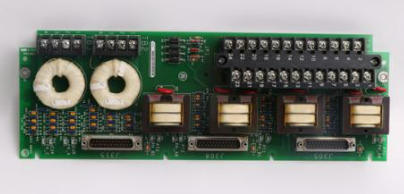

Name: IS200EPCTG1A GE Exciter PT CT Terminal BoardAuxiliary Card
Brand: Joyoung International Trading Co.,Ltd
SKU: IS200EPCTG1A
Price: 2000 USD
Availability: InStock

Home Products GE Fanuc PLC

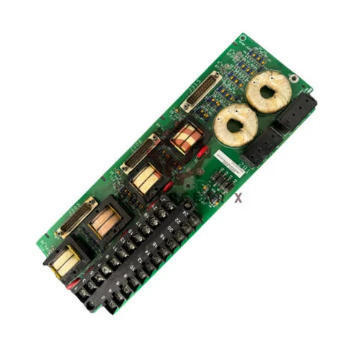

IS200EPCTG1A GE Exciter PT CT Terminal BoardAuxiliary Card

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	CO
Model Number:	IS200EPCTG1A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	2000
Packaging Details:	6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	10pcs

Contact Now

Detailed Product Description

Brand Name:	GE	Payment:	T/T
Courier Partners:	DHL, UPS, TNT, FedEx And EMS	Packing Size:	6.4" X 6.4" X 4.8" (16cm X 16 Cm X 12 Cm)
Country Of Origin/Original Country:	United States (USA)	Model:	IS200EPCTG1A
Color:	Depends On Material	Lead Time:	In Stock
Condition:	New	Sales Price:	Inquiry
Shipping Port:	Xiamen	Gross Weight/Shipping Weight:	2.2 Lbs / 35.2 Oz / 1kg
Lead Time:	5-8 Work Days	Warranty:	12 Months

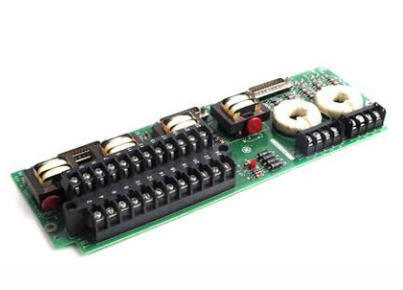

IS200EPCTG1A GE Exciter PT CT Terminal Board Auxiliary Card

The IS200EPCTG1A is an excitation PT/CT terminal board manufactured by GE. This module is part of the GE EX2100 series excitation control system and is primarily used to collect and process feedback signals from generator voltage and current transformers, providing high-precision measurement data for the control system.

Product Specifications

Brand Name	GE
Model	IS200EPCTG1A
Origin	United States (USA)
HS Code	8537101190
Payment	T/T

Additional Information

N/M	N/M
DS200TBQBG1A	IC200CHS022
DI3301	KJ2005X1-BA1
8200-1302	IQS450 204-450-000-002 A1-B23-H05-I0

Product Advantages

Electrical isolation protection with excellent EMI and high-voltage surge protection
System redundancy support with triple-module redundancy capability
Highly secure error-proof design with independent onboard fuse at PT input
Extremely low signal attenuation for accurate measurements
Quick fault isolation to prevent damage to main circuit and upstream control boards

Technical Configuration

Q: What is the purpose of the JP1 jumper on the module? How is it set?

Function: Used to configure the signal type of the 1st additional analog input channel.

Setting Methods:
Voltage Mode: Place jumper in corresponding position to receive 0-10 V DC signal
Current Mode: Place jumper in corresponding position, connect to 250 Ω load resistor, and receive 4-20 mA signal
