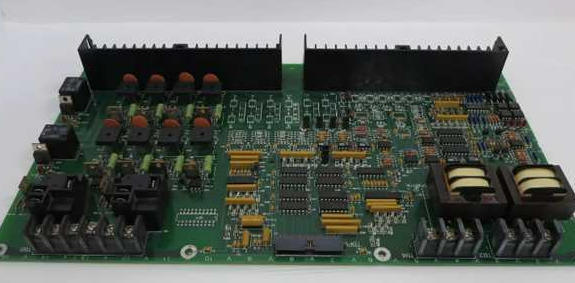

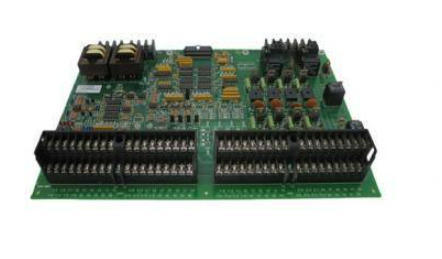

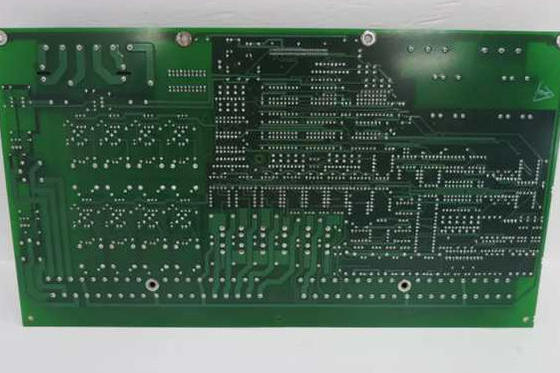

DS200DDTBG2A GE High-Speed Auxiliary I/O Terminal Board

Description:

DS200DDTBG2A is a commonly used digital drive wiring terminal in GE's industrial automation and excitation/frequency control systems. It is responsible for the interface and isolation between the on-site logic signals and the main control board.

Product Details:

Additional Information:

Product advantages:

The DS200DDTBG2A contains multiple sets of terminal blocks, which are used to connect external switch quantity inputs, relay contact outputs or status feedback signals. It is equipped with hardware jumpers for selecting signal levels or configuring circuit logic. On the board, there are multi-pin connector sockets for transmitting organized digital signals to the main control board card through a dedicated flat ribbon cable.

Q1: After replacing the new board, the system logic is abnormal. What should I do?

A: First, check the jumpers. The new board must exactly replicate the jumper positions of the old board; otherwise, it will result in mismatched signal levels or control logic.
