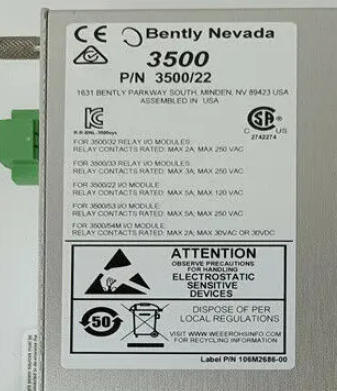

Name: Bently Nevada 3500/22M 146031-01 Transient Data Interface
Brand: Joyoung International Trading Co.,Ltd
SKU: 3500/22M 146031-01
Price: 1000 USD
Availability: InStock

Home Products Bently Nevada Parts

Bently Nevada 3500/22M 146031-01 Transient Data Interface

Product Details:

Place of Origin:	USA
Brand Name:	Bently Nevada
Certification:	CO
Model Number:	3500/22M 146031-01
Document:	146031-01.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	1000
Packaging Details:	original
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Contact Now

Detailed Product Description

Product Name:	Bently Nevada 3500/22M 146031-01 Transient Data Interface	Product Model:	3500/22M 146031-01
Condition:	In Stock	Quality:	New And Original
Market:	Worldwide Market	Material:	Original
Lead Time:	IN STOCK	Shipping Terms:	UPS / DHL / TNT / EMS / Fedex
Gross Weight:	1kg	Packing Size:	6" X 4" X 2" (15 Cm X 10 Cm X 5 Cm)
Highlight:	Bently Nevada 3500/22M transient data interface , Bently Nevada 146031-01 data interface module , Bently Nevada 3500/22M with warranty

Bently Nevada 3500/22M 146031-01 Transient Data Interface

The Bently Nevada 3500/22M Transient Data Interface (TDI) is a specialized module designed for 3500 monitoring system racks. This interface serves as the critical link between the monitoring system and computer systems running specialized diagnostic software, enabling comprehensive data collection and transmission for industrial machinery analysis.

Product Specifications

Specification	Details
Brand Name	Bently Nevada
Model	146031-01
Catalog	3500/22M
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$1000
Warranty	12 months
Lead time	3-5 work days

Technical Description

This Transient Data Interface module is specifically engineered to collect both standard operational data and detailed transient machine data, transmitting this information via Ethernet connection to host computers for analysis. The module is installed in Slot 1 of the 3500 rack system, positioned adjacent to the power supplies. Every 3500 monitoring rack requires either a TDI module or compatible interface in this primary slot position.

The TDI operates in conjunction with monitoring modules within the rack to continuously gather operational data while maintaining the system's primary protective alarm functions. For enhanced data collection capabilities including dynamic and high-resolution waveform data, an optional Channel Enabling Disk is available to provide comprehensive diagnostic information for maintenance planning and machinery analysis.

Compatible Components

Component Reference	Model Number
N/M	N/M
1746-IB16	AAI143-S00
IMDSI02	1794-IB16
KJ2201X1-HA1	T8850
