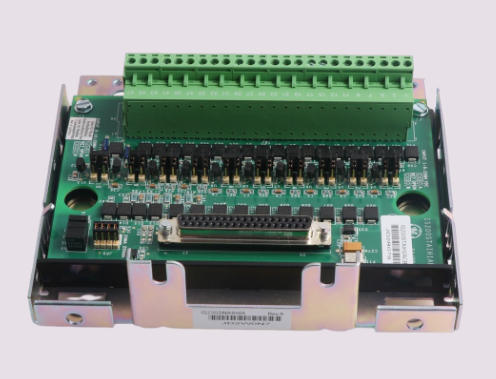

GE IS200SSCAH2AEC Simplex Analog Input Terminal Board 24 V DC with 10 Analog Inputs and 2 Analog Outputs

The GE IS200SSCAH2AEC is a Simplex Analog Input Terminal Board manufactured and designed by General Electric as part of the Mark VIe Series used in distributed control systems.

The Simplex Analog Input (STAI) terminal board is a small analog input terminal board that attaches to the pack and supports:

• 10 analog inputs
• 2 analog outputs

Two-wire, three-wire, four-wire, or transmitters with external power can all be connected to the 10 analog inputs. Two 0-20 mA jumper-configurable analog outputs are available, with one supporting 0-200 mA current. The board is only offered in simplex form with high-density Euro-block type terminal blocks.

The board features an onboard ID chip for system diagnostics identification to the pack. The IS200SSCAH2AEC is a high-performance Simplex Analog Input Terminal Board developed for GE's Mark VIe turbine control system, ensuring accurate acquisition and processing of analog signals from field devices for reliable data transmission in critical turbine monitoring and control applications.
