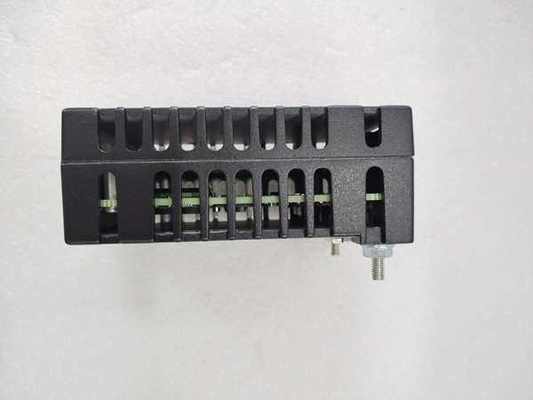

IS220PDOAH1A GE Discrete Output Module Discrete Output Module 24 Number of Channels

IS220PDOAH1A GE Discrete Output Module Discrete Output Module 24 Number of Channels

Product Details:

Additional Information:

Description:

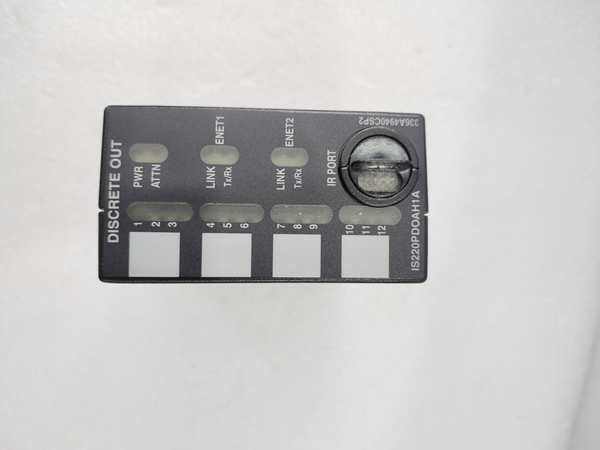

The GE IS220PDOAH1A is a Proportional Digital Output Module Manufactured and designed by General Electric as part of the Mark VIe Series used in GE Distributed Gas Turbine Control Systems. The PDOA provides the electrical interface between one or two I/O Ethernet networks and a discrete output terminal board. The pack contains a processor board common to all Mark VIe distributed I/O packs and an acquisition board specific to the discrete output function. The pack can control up to 12 relays and accepts terminal board-specific feedback. Electromagnetic relays (with types TRLYH1B, C, D, and F terminal boards) and solid-state relays (with type TRLYH1E boards) are available. Input to the pack is through dual RJ45 Ethernet connectors and a three-pin power input. Output is through a DC-37 pin connector directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs, and local diagnostic serial communications are possible through an infrared port.

IS220PD0AH1A VersaMax provides several types of snap-together l/0 carriers and interposing terminalsto provide maximum wiring flexibility, as well as module hot insertion and removalVersaMax carriers support lEC box-style, spring-style, and barrier-style terminals and arealso available as snap-on auxiliary terminal strips and interposing terminals that can bemounted separately and connected to a connector-style carrier by an l/0 cable.
