Name: GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage
Brand: Joyoung International Trading Co.,Ltd
SKU: IS200TDBTH6A
Price: 4000 USD
Availability: InStock

Home Products GE Fanuc PLC

GE Mark VI Discrete Input/Output Terminal Board with 24 Channels and 16-145 V DC Wetting Voltage

Product Details:

Place of Origin:	USA
Brand Name:	GE
Certification:	CO
Model Number:	IS200TDBTH6A

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$4000
Packaging Details:	6.4" x 6.4" x 4.8" (16cm x 16 cm x 12 cm)
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	10pcs

Contact Now

Detailed Product Description

Brand Name:	GE	Model:	IS200TDBTH6A
Condition:	New	Gross Weight/Shipping Weight:	2.2 Lbs / 35.2 Oz / 1kg
Packing Size:	6.4" X 6.4" X 4.8" (16cm X 16 Cm X 12 Cm)	Country Of Origin/Original Country:	United States (USA)
Lead Time:	In Stock	Shipping Port:	Xiamen
Payment:	T/T	Sales Price:	Inquiry
Color:	Depends On Material	Warranty:	12 Months
Lead Time:	5-8 Work Days	Courier Partners:	DHL, UPS, TNT, FedEx And EMS
Highlight:	24 Channels Terminal Board , 16-145 V DC Wetting Voltage Terminal Board , Mark VI I/O Terminal Board

IS200TDBTH6A GE Mark VI Discrete Input/Output Terminal Board - 24 Channels

Product Specifications

Brand Name	GE
Model	IS200TDBTH6A
Catalog	Mark VI
Origin	United States (USA)
Dimension	16×16×12cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$4000
Warranty	12 months
Lead time	3-5 work days

Additional Information

GEI-100165	GEDS Standard Message Format (GSM)
GFK-1396	CIMPLICITY HMI CimEdit Operation Manual
GEH-6408	Control System Toolbox for Configuring the Trend Recorder

Product Description

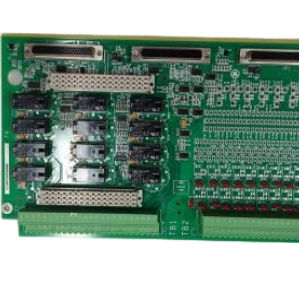

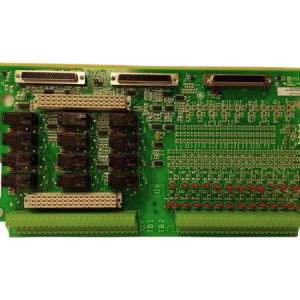

The GE IS200TDBTH6A is a Discrete Input/Output Terminal Board manufactured by General Electric as part of the Mark VIe Series for Distributed Control Systems. This flat or DIN-rail mounted TMR contact input/output terminal board features:

24 group-isolated contact inputs with external wetting voltage support (24V, 48V, or 125V DC)
Built-in noise suppression for protection against surges and high-frequency noise
12 form-C relay outputs for enhanced relay functionality
Option card compatibility for expanded capabilities
Onboard signal conditioning identical to STCI, scaled for 24V, 48V, and 125V DC wetting voltage
Input voltage ranges: 16-32V DC, 32-64V DC, and 100-145V DC respectively
Current-limited contact inputs (2.5mA for circuits 1-21, 10mA for circuits 22-24)
0.5A current limitation on 24V DC supply using resettable polymer PTC fuses

The wetting voltage is set at half of the threshold voltage for optimal performance. The I/O pack includes detailed touch-sensing circuitry diagrams for precise configuration.
