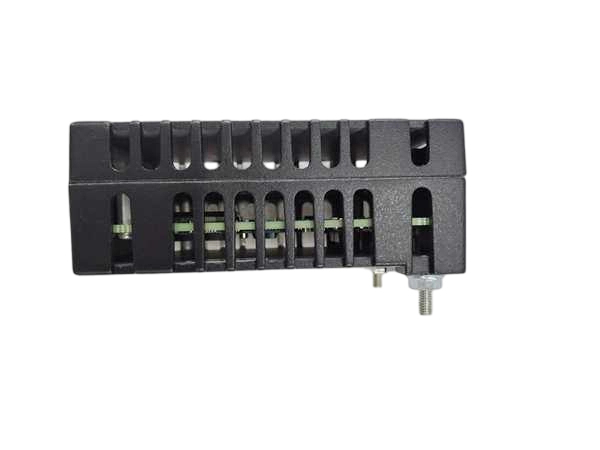

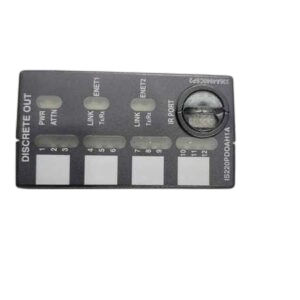

GE IS220PDTDH1A Proportional Digital Output Module Gas turbine control panel

GE IS220PDTDH1A Proportional Digital Output Module Gas turbine control panel

Product Details:

Additional Information:

Description:

The IS220PDTDH1A is a discrete output module in the Mark VIe series control systems manufactured by GE (General Electric). This module is primarily used in industrial automation, responsible for converting digital signals into discrete signals (such as switch states, relay states, etc.) to control industrial processes.

INSTALLATION:

Directly plug one PDOA I/O pack for simplex or three PDOA I/O packs for TMR into the terminal board connectors.

Mechanically secure the packs using the threaded studs adjacent to the Ethernet ports. The studs slide into a mounting bracket specific to the terminal board type.

The bracket location should be adjusted such that there is no right-angle force applied to the DC37 connector between the pack and the terminal board. The adjustment should only be required once in the life of the product.

Plug in one or two Ethernet cables depending on the system configuration.

The pack will operate over either port. If dual connections are used, the standard practice is to connect ENET1 to the network associated with the R controller.

Apply power to the pack by plugging in the connector on the side of the pack. It is not necessary to insert this connector with the power removed from the cable as the I/O pack has inherent soft-start capability that controls the current inrush on the power application.
