Name: F3238 HIMA 8 channel input module
Brand: Joyoung International Trading Co.,Ltd
SKU: F3238
Price: 2500 USD
Availability: InStock

Home Products Other Brands

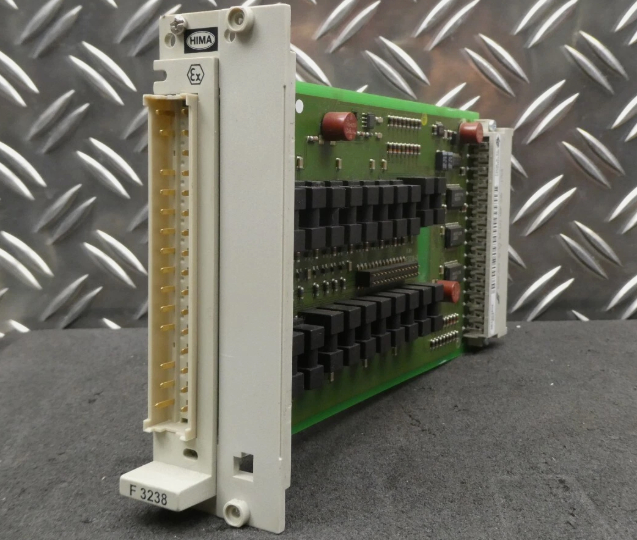

F3238 HIMA 8 channel input module

Product Details:

Place of Origin:	United States (USA)
Brand Name:	HIMA
Certification:	CO
Model Number:	F3238

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	$2500
Packaging Details:	Original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Contact Now

Detailed Product Description

Brand Name:	F3238 HIMA 8 Channel Input Module	Product Model:	F3238
Part Number:	F3238	Packing:	Original
Warranty:	1 Year	Lead Time:	In Stock
Highlight:	F3238 HIMA input module , 8 channel input module , F3238 input module

F3238 HIMA 8 channel input module

Product Details:

Brand Name	HIMA
Model	F3238
Catalog	HIQUAD
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$2500
Warranty	12 months
Lead time	3-5 work days

Additional Information:

Features

High integration

Orthogonality of phase and amplitude control

Advanced Serial Peripheral Interface (SPI) with 4-state memory

Superior channel-to-channel isolation

Minimal footprint

14GHz to 16GHz operation

Integrated proportional-to-absolute temperature (PTAT) sensor with external biasing

-40°C to +95°C internal temperature sensor

Description:

The module F 3238 is a 8 channel input module and is used to evaluate proximity switches
(according to NAMUR) or contacts with resistor network, in intrinsically safe circuits (Ex)i.
The proximity switches or contacts can be installed in hazardous areas from Zone 0 on, if
certified.
Technical data
Ambient temperature: Ta = 0°C ... + 60°C
Supply circuit UB1:
Un = 24VDC (-15%, +20%), max. ≤ 30V
Um = 40V
(connector X4, pins z2, d2)
Supply circuit UB2:
Un = 5VDC (±10%), max. ≤ 6V
Um = 7V
(connector X2, pins z6/d2 and z30/d30)
Intrinsically safe values for the control circuits,
type of protection [Ex ia Ga] IIC/IIB
or [Ex ia Da] IIIC/IIIB
single circuit: parallel circuit:
Uo: 9.9 V Uo: 9.9 V
Io: 15 mA Io: 15 mA
Po: 38 mW Po: 38 mW

F3238 HIMA 8 channel input module 0

F3238 HIMA 8 channel input module 1
