K9203 HIMA ACCESSORIES RACK FAN

Product Details:

Place of Origin:	United States (USA)
Brand Name:	HIMA
Certification:	CO
Model Number:	K9203

Payment & Shipping Terms:

Minimum Order Quantity:	1EA
Price:	$2000
Packaging Details:	Original
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Contact Now

Detailed Product Description

Brand Name:	K9203 HIMA ACCESSORIES RACK FAN	Product Model:	K9203
Part Number:	K9203	Packing:	Original
Warranty:	1 Year	Lead Time:	In Stock
Highlight:	K9203 ACCESSORIES RACK FAN , HIMA ACCESSORIES RACK FAN

K9203 HIMA ACCESSORIES RACK FAN

Product Details:

Brand Name	HIMA
Model	K9203
Catalog	HIQUAD
Origin	United States (USA)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$2000
Warranty	12 months
Lead time	3-5 work days

Additional Information:

Features

High integration

Orthogonality of phase and amplitude control

Advanced Serial Peripheral Interface (SPI) with 4-state memory

Superior channel-to-channel isolation

Minimal footprint

14GHz to 16GHz operation

Integrated proportional-to-absolute temperature (PTAT) sensor with external biasing

-40°C to +95°C internal temperature sensor

Description:

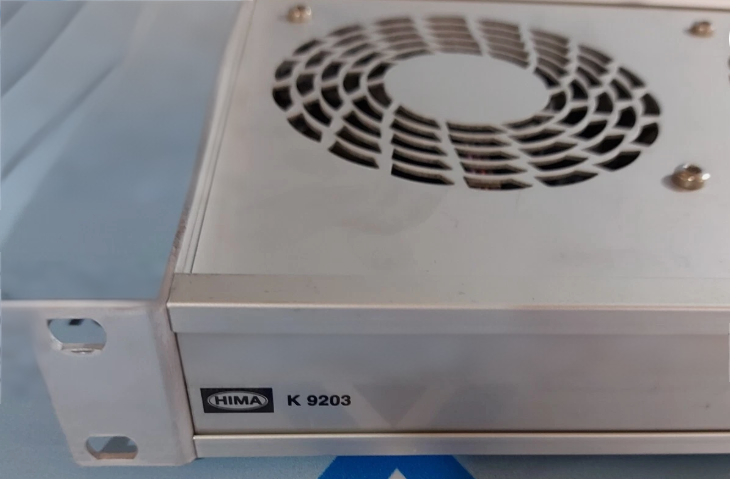

The K 9203A rack fan is a circulation fan equipped with the following components: ·

3 axial fans ·

Redundant supply ·

Fan operation monitoring ·

Voltage monitoring

Application: Forced ventilation of 19'' rack installations. Air is sucked in below the circulation fan and is blown out from the top. The axial fans are

positioned to align with HIMA 19'' subracks.

Installation site: Anywhere within the 19'' field

Specifications:

Material Aluminum, anodized

Operating data 24 VDC, -15…+20 %, rpp ≤ 15 % max. 750 mA

Air flow 300 m3 per hour

Rated speed 2800 min-1

Sound pressure level approx. 55 dB(A)

Lifetime at 40 °C 62 500 h

Space requirement 19'', 1 RU, depth 215 mm

Weight 1.8 kg

Ambient temperature -20...+70 ºC
