23BA22 1KGT004800R5002 ABB Command Output Monitoring Board

23BA22 1KGT004800R5002 ABB Command Output Monitoring Board

  • 23BA22 1KGT004800R5002 ABB Command Output Monitoring Board
23BA22 1KGT004800R5002 ABB Command Output Monitoring Board
Product Details:
Place of Origin: USA
Brand Name: ABB
Certification: COC
Model Number: 23BA22
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: inquiry
Packaging Details: original
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 10 Piece per a day
Contact Now
Detailed Product Description

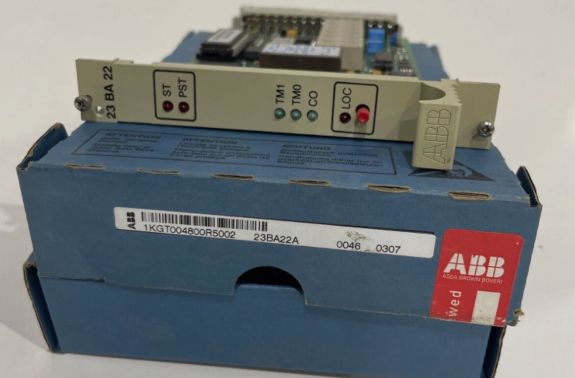

Name: 23BA22 1KGT004800R5002 ABB Command Output Monitoring Board Model: 23BA22
Package: STANDARD Warranty: 12 Months
Gross Weight: 2.2 Lbs / 35.2 Oz / 1kg Packing Size: 7" X 7" X 4" (18 Cm X 18 Cm X 10 Cm)
Lead Time: 1~3 Days Quality: 100%Brand
Product Name: Command Output Monitoring Board Stock: Available

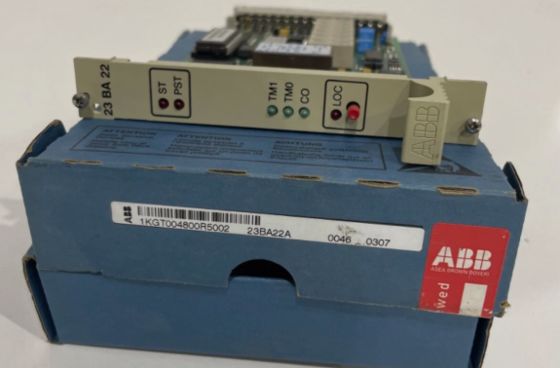

23BA22 1KGT004800R5002 ABB Command Output Monitoring Board





Product Details:



Brand Name ABB
Model 23BA22
Product ID 1KGT004800R5002
Catalog ABB Procontrol
Origin Finland
Dimension 18*18*10 cm
Weight 1kg
HS Code 8537101190
Payment T/T
Sales Price $600
Warranty 12 months
Lead time 3-5 work days





Description:



After the communication unit and output board module receive and successfully verify an object command, the following steps are executed prior to final command issuance:



• The (1-out-of-n) check on command output monitoring board 23BA22 is activated.



• The resistance of plug-in relays inserted in the switching output circuit is measured and compared against parameterized upper and lower thresholds.



If the resistance falls within limits, the object command output to the selected device is activated via binary output board 23BA20.



• The command output pulse timer is initiated to monitor pulse duration, deactivating the command output based on response indication or when pulse time expires on board 23BA22.



• The command is canceled if test conditions during verification are unmet.



In standard applications, one command output monitoring board 23BA22 per RTU station suffices for (1-out-of-n) verification.



When inserting plug-in relays with different resistance values, two independent check circuits can be driven by board 23BA22 if auxiliary test voltage is supplied by separate isolated voltage sources.





23BA22 1KGT004800R5002 ABB Command Output Monitoring Board 0



23BA22 1KGT004800R5002 ABB Command Output Monitoring Board 1
