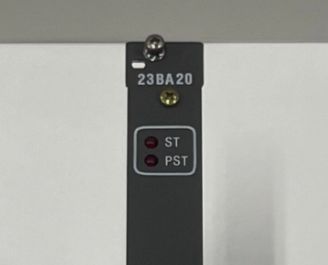

Name: 23BA20 GSNE000700R5312 ABB Binary Output Board
Brand: Joyoung International Trading Co.,Ltd
SKU: 23BA20
Price: 4,540.00 USD
Availability: InStock

Home Products ABB Module

23BA20 GSNE000700R5312 ABB Binary Output Board

Product Details:

Place of Origin:	Finland
Brand Name:	ABB
Certification:	COC
Model Number:	23BA20

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	inquiry
Packaging Details:	original
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Contact Now

Detailed Product Description

Name:	23BA20 GSNE000700R5312 ABB Binary Output Board	Model:	23BA20
Package:	STANDARD	Warranty:	12 Months
Gross Weight:	2.2 Lbs / 35.2 Oz / 1kg	Packing Size:	7" X 7" X 4" (18 Cm X 18 Cm X 10 Cm)
Lead Time:	1~3 Days	Quality:	100%Brand
Product Name:	Binary Output Board	Stock:	Available

23BA20 GSNE000700R5312 ABB Binary Output Board

Product Details:

Brand Name	ABB
Model	23BA20
Product ID	GSNE000700R5312
Catalog	ABB Procontrol
Origin	Finland
Dimension	181810 cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$1500
Warranty	12 months
Lead time	3-5 work days

Description:

The 23BA20 board has sixteen output relays, with two groups of eight contacts sharing a common return circuit.

This allows splitting the output channels to two different process voltage sources.

The processing I/O microcontroller (EAP - Input Output Processor) activates any output requested via command output demand, which is

enforced by the VAP of the CMU (CMU = Communication Unit).

The EAP controls the time duration of pulsed outputs by loading pulse length time values.

Output monitoring and supervision

Every output is checked and monitored by the EAP through distinct test and supervision functions:

--- Readback of output pattern prior to activation

--- Monitoring of 24V DC from the backplane bus during active output for relay switching

--- Pulse duration controlled by EAP

--- Any detected error indicated via LED.

Tag:
