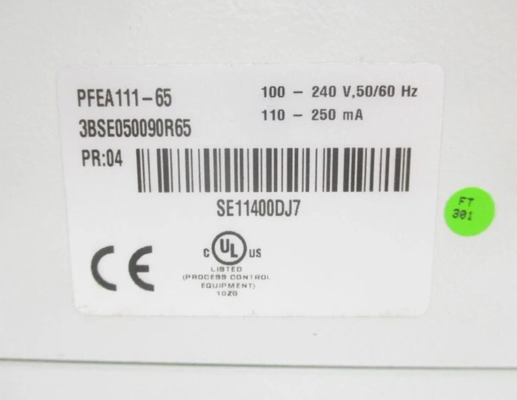

PFEA111-65 3BSE050090R65 ABB Tension Electronics

PFEA111-65 3BSE050090R65 ABB Tension Electronics

Product Details:

Description:

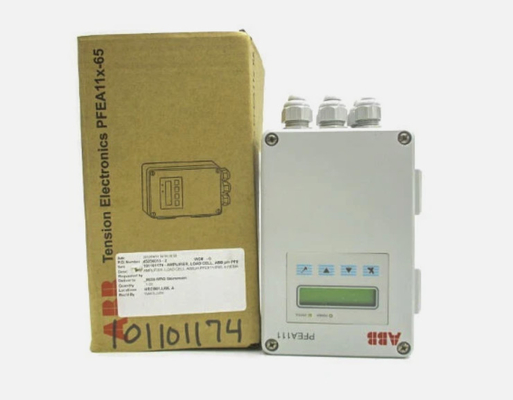

Model: PFEA111-65 ABB Tension Amplifier

Compatible with various ABB load cells:

Load cells of type: PFCL 201, PFCL 301E, PFTL 101, PFTL 201, PFTL 301E and PFRL101

Order No.: 3BSE050090R65

IP 20 non-sealed

IP 65 NEMA 4

Operating voltage: 24V DC

Holding frequency: 45-65 Hz

Power consumption: 8W @ 24V

Current: 0.5 Arms, 330 Hz

Number of inputs: 2

Input impedance: 10 kohm

Voltage output: 0-10V

Max. load: 5 mA

Current output: 4-20mA

PFEA112 Communication: Profibus DP slave

Transfer speed: max. 12 Mbit/s

Address range: 0-125

ABB tension controllers cover a wide range of applications, primarily including three controller versions that offer different levels of performance and functionality.

All three versions feature:

Multi-language display and operator panel keys

Capability to set different parameters

Real-time tension system status monitoring

The 2x16-character display system can show:

Combined tension value

Differential tension value

Individual load cell signals

All three versions are available in two mounting types:

DIN-rail type

IP65 (NEMA4) enclosure type

To accommodate different installation and operating environments.

Datasheet Link:3BSE050090R65 (1).pdf
