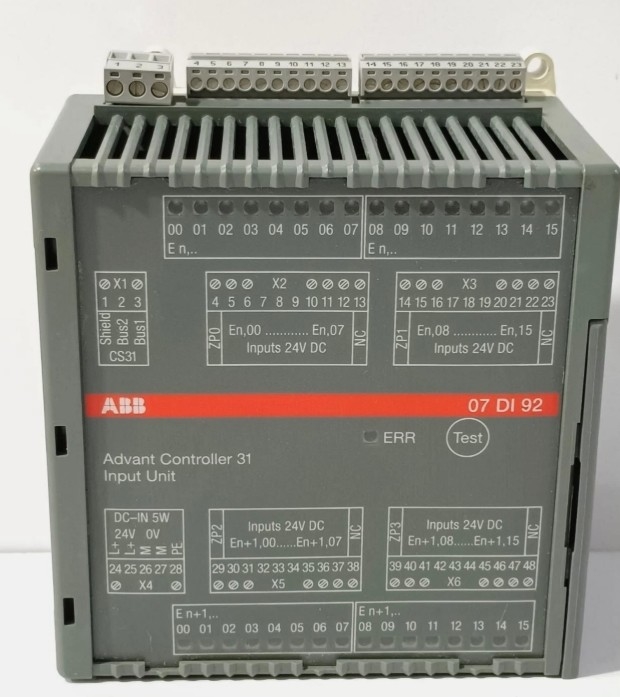

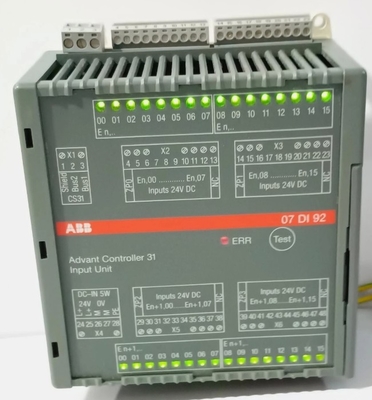

Name: 07DI92 GJR5252400R0101 ABB Advant Controller 31 Input Unit 07 DI 92
Brand: Joyoung International Trading Co.,Ltd
SKU: 07DI92
Price: 4,540.00 USD
Availability: InStock

Home Products ABB Module

07DI92 GJR5252400R0101 ABB Advant Controller 31 Input Unit 07 DI 92

Product Details:

Place of Origin:	Sweden
Brand Name:	ABB
Certification:	COC
Model Number:	07DI92

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	inquiry
Packaging Details:	original
Delivery Time:	5-8 work days
Payment Terms:	T/T
Supply Ability:	10 Piece per a day

Contact Now

Detailed Product Description

Name:	07DI92 GJR5252400R0101 ABB Advant Controller 31 Input Unit 07 DI 92	Model:	07DI92
Package:	STANDARD	Warranty:	12 Months
Gross Weight:	2.2 Lbs / 35.2 Oz / 1kg	Packing Size:	7" X 7" X 4" (18 Cm X 18 Cm X 10 Cm)
Lead Time:	1~3 Days	Quality:	100%Brand
Product Name:	Programmable Logic Controller	Stock:	Available
Highlight:	ABB Advant Controller , GJR5252400R0101 ABB Advant Controller

07DI92 GJR5252400R0101 ABB Advant Controller 31 Input Unit 07 DI 92

Product Details:

Brand Name	ABB
Model	07DI92
Product ID	GJR5252400R0101
Catalog	ABB Procontic AC31
Origin	Sweden (SE)
Dimension	161612cm
Weight	1kg
HS Code	8537101190
Payment	T/T
Sales Price	$1100
Warranty	12 months
Lead time	3-5 work days

Additional Information:

Number of channels per module	32
Division of channels into groups	4 groups with 8 channels each, channels En,00...En,07 and En,08...En,15 channels En+1,00...En+1,07 and En+1,08...En+1,15
Reference potentials for the inputs	ZP0, ZP1, ZP2 and ZP3
Electrical isolation	group from group, all groups from the rest of the unit

Description:

The digital input module 07 DI 92 is used as a remote module on the CS31 system bus. It contains 32 inputs, 24 V DC, in 4 groups with the following features: The 4 groups of the inputs are electrically isolated

from each other and from the rest of the unit.The module occupies two digital addresses for inputs on the CS31 system bus.

The unit works with a supply voltage of 24 V DC.The system bus connection is electrically isolated from the rest of the unit.

The module can be mounted on a DIN rail (15 mm high) or with 4 screws. The following illustration shows the electrical connection of the input module.

Module 07 DI 92 reads the position of the address switch only during the initialization after the power was switched on, which means, that changes of the setting during operation will remain ineffective until the next initialization.

07DI92 GJR5252400R0101 ABB Advant Controller 31 Input Unit 07 DI 92 0

Datasheet Link:

ABB 07DI92 GJR5252400R0101.pdf
