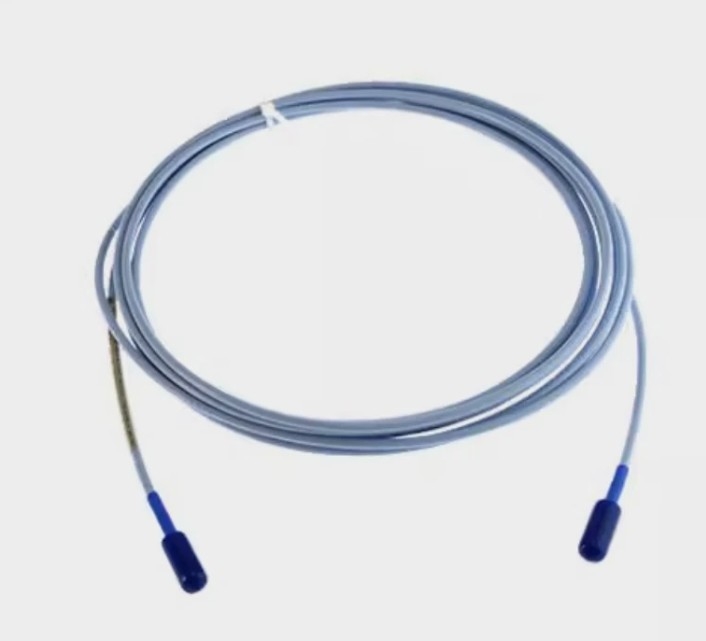

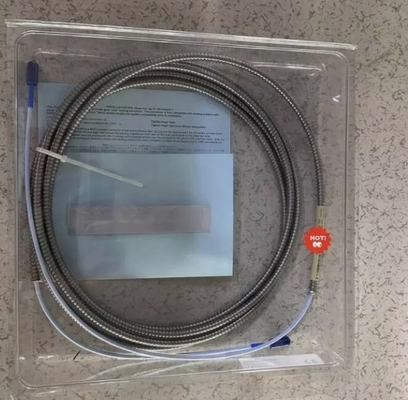

330190-040-01-00 Bently Nevada 3300 XL 5/8 MM Armoured Extension Cable

330190-040-01-00 Bently Nevada 3300 XL 5/8 MM Armoured Extension Cable

Product Details:

Additional Information:

Description:

When gapped at the center of the linear range, the interaction between two separate transducer systems (cross-talk) will be less than 50 mV on shaft diameters of at least 50 mm (2 in) or greater. You should take care to maintain minimum separation of transducer tips, generally at least 40 mm (1.6 in) for axial position measurements or 38 mm (1.5 in) for radial vibration measurements to limit cross-talk to 50 mV or less. Radial vibration or position measurements on shaft diameters smaller than 76.2 mm (3 in) will generally change the scale factor.

It is the responsibility of the customer or user to ensure that all liquids and gases are contained and safely controlled should leakage occur from a proximity probe. In addition, solutions with high or low pH values may erode the tip assembly of the probe causing media leakage into surrounding areas. Bently Nevada, LLC will not be held responsible for any damages resulting from leaking 3300 XL 8 mm proximity probes. In addition, 3300 XL 8 mm proximity probes will not be replaced under the service plan due to probe leakage.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.

More products for your choice:

330851-02-000-070-50-00-05

330130-040-01-00

330190-040-01-00

330103-00-15-10-02-00

21504-000-040-05-02

330171-00-12-05-02-00

Datasheet Link:


Bently Nevada 330190-040-01-00.pdf
