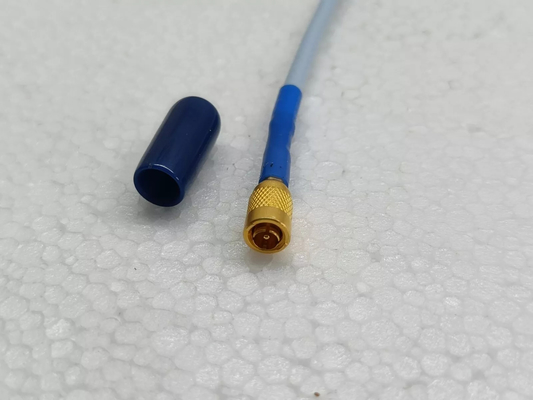

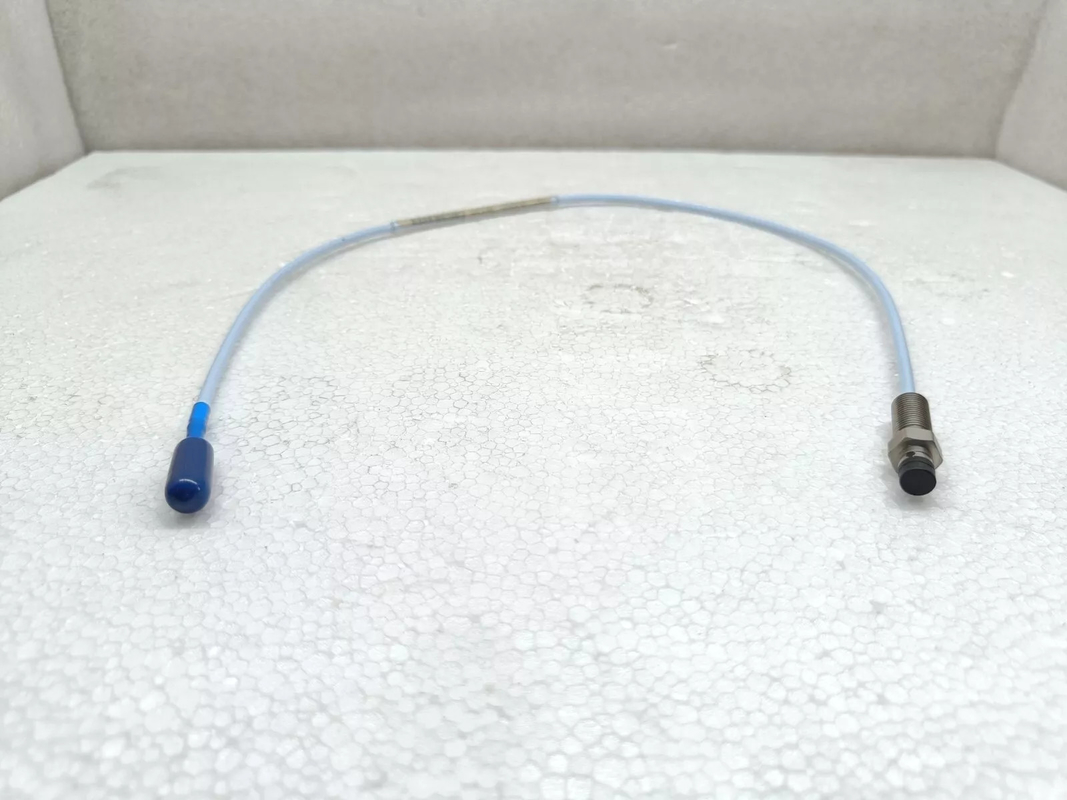

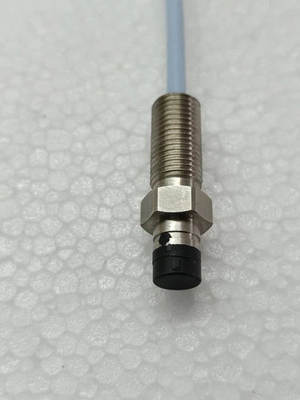

330105-02-12-05-02-00 Bently Nevada Probe Industrial Proximity Sensor

330105-02-12-05-02-00 Bently Nevada Probe Industrial Proximity Sensor

Product Details:

Additional Information:

Description:

An extended temperature range (ETR) probe and ETR extension cable are available for applications in which either the probe lead or extension cable may exceed the standard 177˚C (350˚F) temperature specification. The ETR probe has an extended temperature rating for up to 218˚C (425˚F). The ETR extension cable rating is up to 260˚C (500˚F). Both the ETR probe and cable are compatible with standard temperature probes and cables, for example, you can utilize an ETR probe with the 330130 extension cable. The ETR system uses the standard 3300 XL Proximitor Sensor. Note that when you use any ETR component as part of your system, the ETR component limits the system accuracy to the accuracy of the ETR system.

The 3300 XL’s SpringLoc terminal strips require no special installation tools and facilitate faster, more robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen.

Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

More products for your choice:

330851-02-000-070-50-00-05

330130-040-01-00

330190-040-01-00

330103-00-15-10-02-00

21504-000-040-05-02

330171-00-12-05-02-00

Datasheet Link:

Bently Nevada 330105-02-12-05-02-00.pdf
