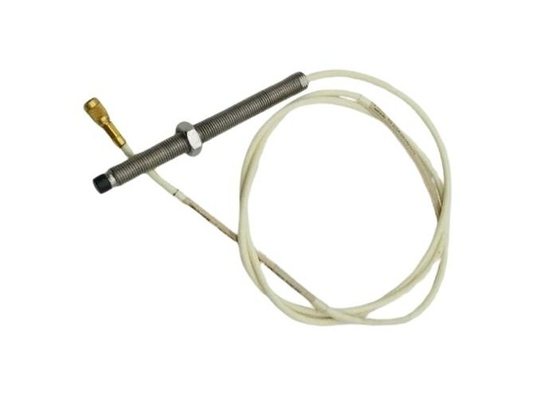

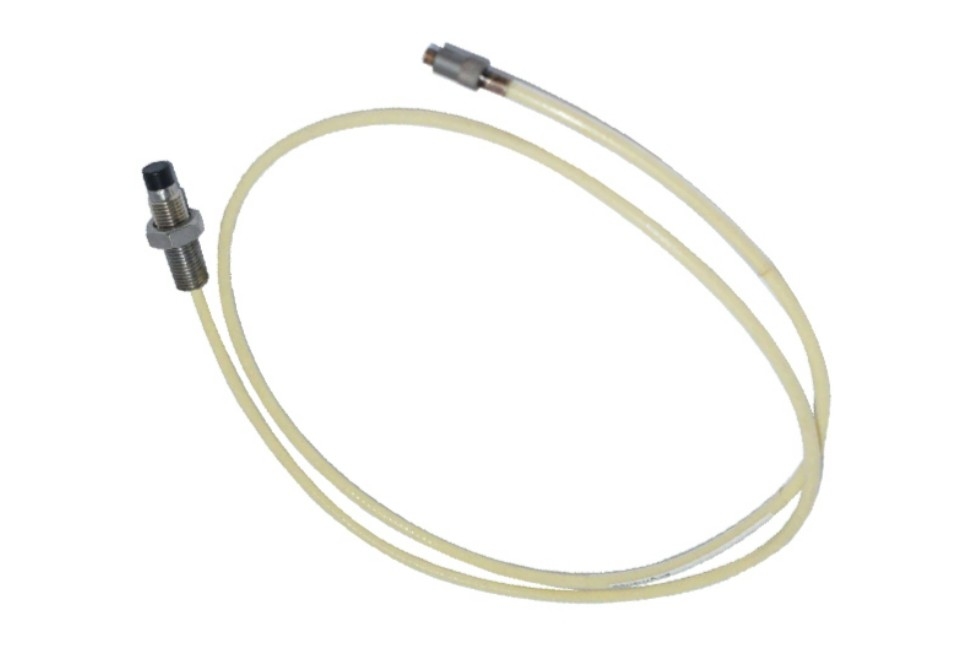

21504-000-008-10-02 Bently Nevada 7200 XL 5 and 8 MM Proximity Sensor

21504-000-008-10-02 Bently Nevada 7200 XL 5 and 8 MM Proximity Sensor

Product Details:

Additional Information:

Description:

The combination of probe with integral lead and extension cable is designed to achieve a system length of either five or nine metres from probe tip to Proximitor. Probes are available with integral leads of various lengths to match the average extension cable lengths. Probes and cables of the same length, and Proximitors with the same part number, are completely interchangeable. For added protection, stainless steel armor is available. It provides improved resistance to physical abuse.

Operating on the eddy current principle, the proximity probe senses the distance between the probe tip and the observed surface. Eddy currents are gencrated in the surface, and the loss of strength in the return signal is detected by the Proximitor, which conditions the signal for linear display onamonitor.

Most Bently Nevada 7200 Transducers are certified by CSA, BASEEFA and FM for use in specific hazardous locations. Refer to Data Sheet L1035 "Bently Nevada Systems for Hazardous Locations" for more details.

More products for your choice:

330851-02-000-070-50-00-05

330130-040-01-00

330190-040-01-00

330103-00-15-10-02-00

21504-000-040-05-02

330171-00-12-05-02-00

Datasheet Link:

Bently Nevada 21504-000-008-10-02.pdf
