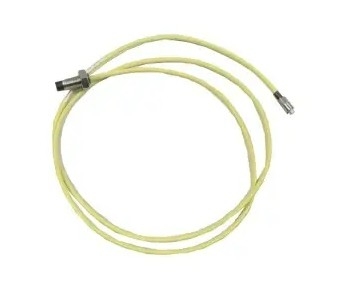

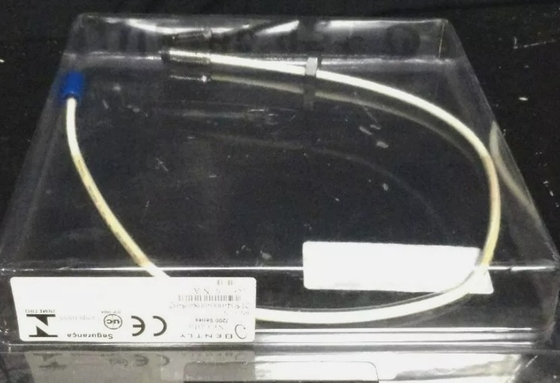

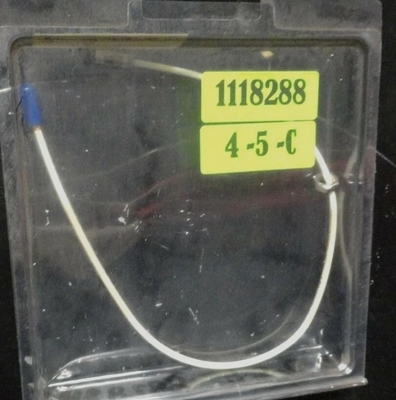

21504-000-008-05-02 Bently Nevada 5 And 8 MM Standard Mount Proximity Probe

21504-000-008-05-02 Bently Nevada 5 And 8 MM Standard Mount Proximity Probe

Product Details:

Additional Information:

Description:

The 5 mm and 8 mm systems use the same type of Proximitor. Both 5 and 9 metre Proximitors are available. A threeconductor, shielded cable provides the signal output and power source input between 7200 Proximitors and Bently Nevada monitors. Proximitors can be located up to 1,000 feet from standard Bently Nevada monitors without degradation of performance.

An improved 8 mm version of the 7200 System is now standard which includes Bently Nevada's Cable LoC™ feature. This new technique of securing the coaxial cable to the probe tip provides the strongest junction yet offered by Bently Nevada and increases the durability of the probe during installation and usage.

Two new cable length options are now available on 8 mm probes. They are 5 metres and 9 metres of integral cable. Since the entire lead-length is built into the probe, an extension cable is not used with these length options.

Nine probe configurations are available to accommodate English and metric thread requirements. The 5 mm probes are constructed of fiberglass. The 8 mm probes are constructed of polyphenylene sulfide, (PPS), a high performance plastic capable of withstanding unusually harsh, wet and/or chemical environments.

Datasheet Link:

Bently Nevada 21504-000-008-05-02.pdf
