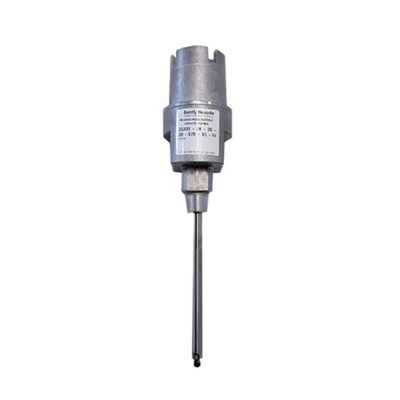

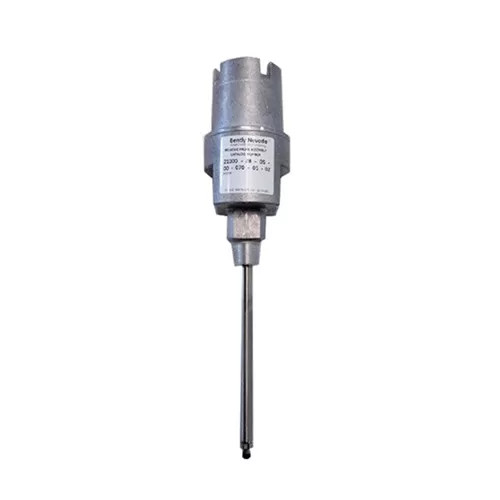

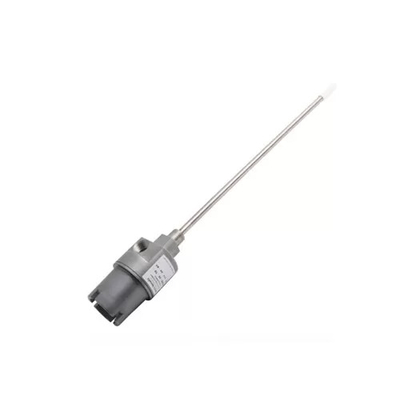

21000-16-10-00-256-13-02 Bently Nevada Proximity Probe Housing Assemblies

21000-16-10-00-256-13-02 Bently Nevada Proximity Probe Housing Assemblies

Product Details:

Additional Information:

Description:

To externally mount proximity probes, use one of these allmetal Proximity Probe Housing Assemblies: 21000 aluminum probe housing assembly. 24701 stainless steel probe housing assembly.

The21000, 24701, and 164818 Proximity Probe Housing Assembliesconsist of the following parts: A dome cover that screws into the body of the housing. Threaded ports for conduit connections. A probe sleeve of optional length.O-rings. A reverse mount proximity probe. A thread seal. Optional conduit fittings.

Sleeve length is determined by the location in which the probe and housing are installed. The probe lead must be longer than the sleeve.

Sleeve lengths longer than 304 mm (12 inches) require additional sleeve support to reduce the vibration associated with unsupported long sleeve lengths.

Bently Nevada offers a probe support and oil seal (part number 37948-01) for long sleeves that must go through an inner bearing housing. We also make custom sleeve supports.

Datasheet Link:

Bently Nevada 21000-16-10-00-256-13-02.pdf
