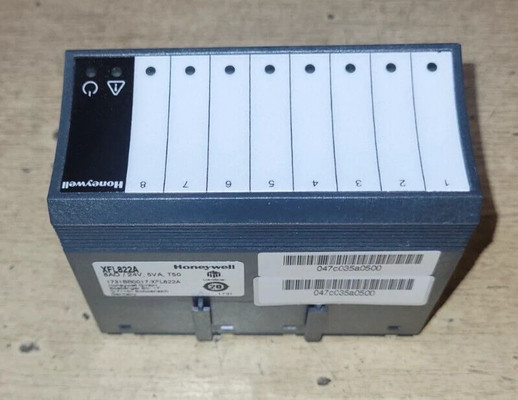

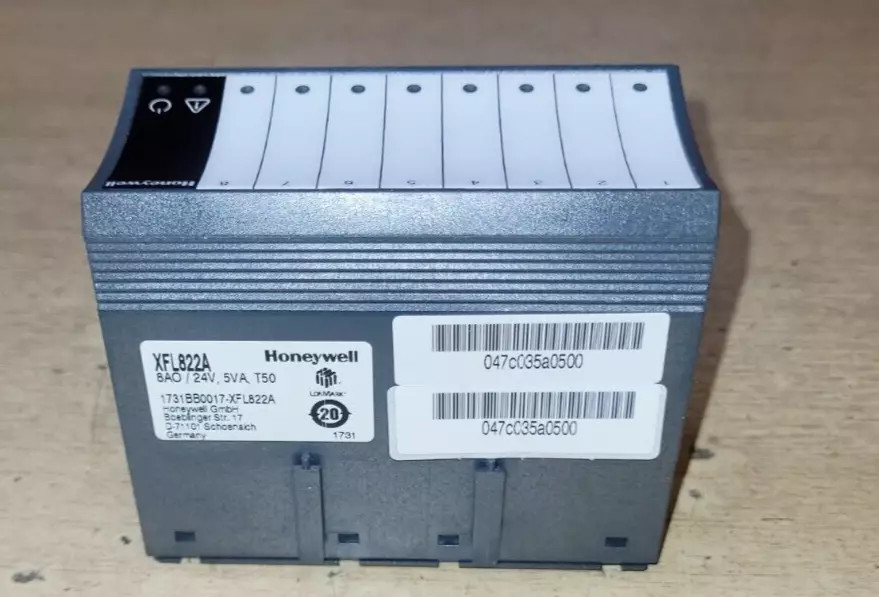

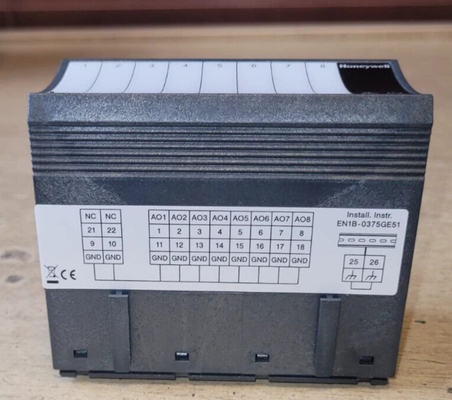

Honeywell XFL822A LONWORKS Bus Analog Output Module (with 8 analog outputs)

Honeywell XFL822A LONWORKS Bus Analog Output Module (with 8 analog outputs)

Product Details:

Additional Information:

Description:

The Excel 800 (consisting of the XCL8010A Controller Module and connected Excel 800 Panel Bus or LonWorks Bus Input/Output Modules) provides highly cost-effective freely programmable control for heating, ventilation, and air conditioning (HVAC) systems. It performs a wide range of energy management functions, including optimum start/stop, night purge, and max. load demand. The Excel 800 provides excellent value during installation and long-term operation.

The Excel 800 operates via "plug & play" Panel Bus I/O Modules, yielding huge installation and commissioning costsavings due to new, patented technologies, while also operating with LONWORKS Bus I/O modules utilizing the LONWORKS communication standard. The I/O modules consist of a terminal socket and a removable electronic module, allowing the socket to be mounted and wired before the electronic module is installed. All electronic modules can be changed without disrupting the power and bus connections: Software updates, configuration, and commissioning are all done automatically for the Panel Bus I/O Modules.

The LONWORKS Bus I/O Modules can be used with any LONWORKS controller. In addition to the main microprocessor, the LONWORKS Bus I/O Modules also have their own Neuron chip (3120). Each LonWorks I/O Module is equipped with an FTT-10A transceiver (linki power compatible). A LONWORKS service button is located on each terminal socket.
