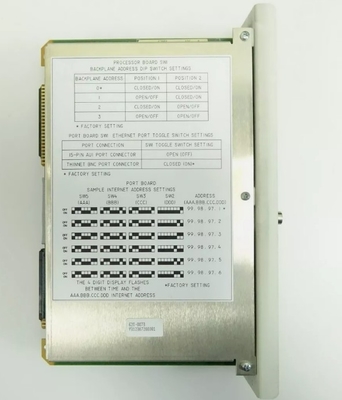

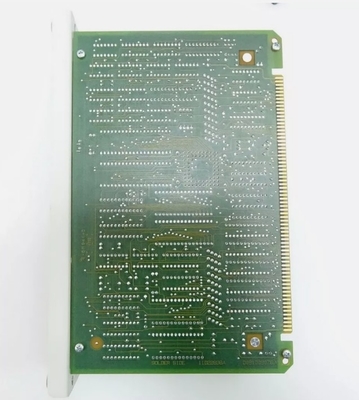

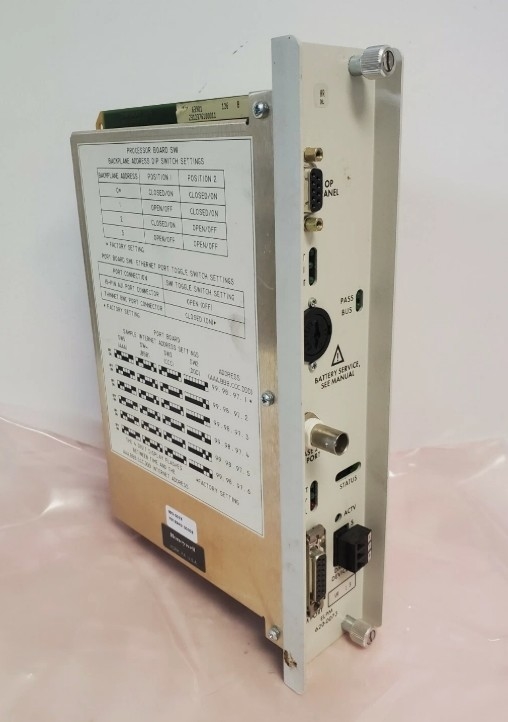

Honeywell 620-0073 Ethernet Loop Processor Module TDC System Replacement Part

Honeywell 620-0073 Ethernet Loop Processor Module TDC System Replacement Part

Product Details:

Additional Information:

Description:

620 system overview; system configuration for all processor models, parallel and serial I/O; addressing; rack assembly mounting; module

settings (jumpers and DIP switches); module installation; cable and conduit routing; wiring; reference information on superseded model numbers.

I/O system overview; detailed module descriptions (digital input, digital output,special function); serial I/O system; fuse and battery requirements.

Hardware description; installation; modes of operation; programming instructions and examples; editing and display functions; documentation and tape functions; troubleshooting and maintenance; codes and error messages.

Product description and requirements; installation and configuration; system startup and menus; IPC 620 instruction set; edit and display functions; program editing instructions; documentation; utility functions; applies to loader with version 3.0 of MS-DOS.
