Description:

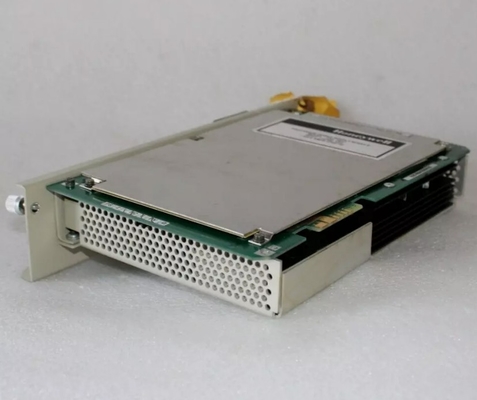

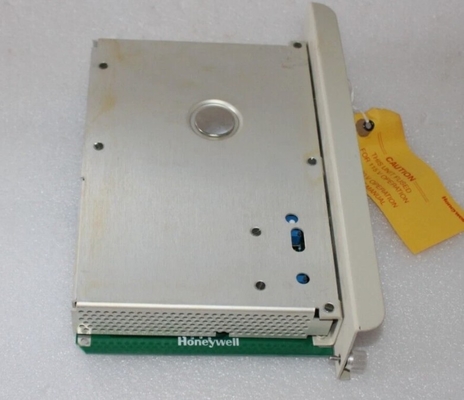

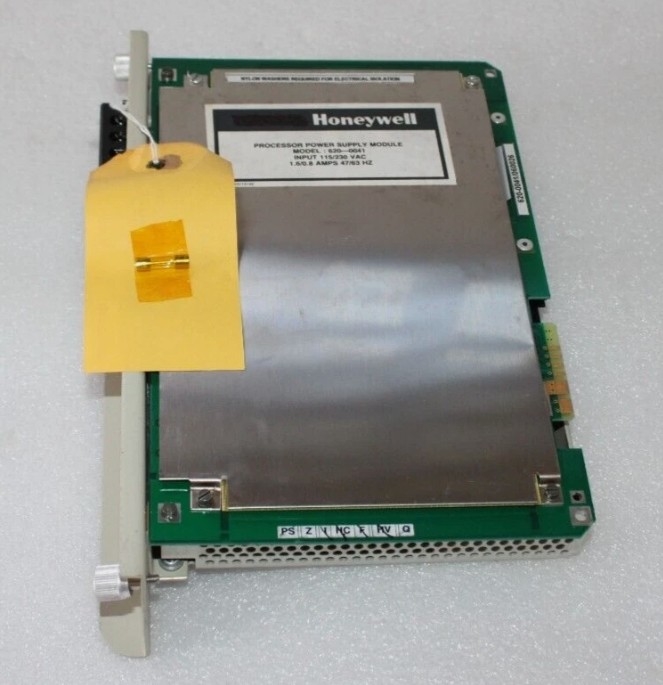

The 620-0041 Processor Power Supply is placed in slot I of the 620-06 processor. It may only be used in the full processor rack. The module's front panel contains terminals labeled with A (Line or Ll), B (common or L2), and a ground symbol for connecting AC power wiring.

The 620-0041 provides 8 amps of +5VDC power for the modules in the rack. It also supplies 600mA of ±15VDC power for analog 1/0 operation. Refer to the 620 INSTALLATION MANUAL or CONFIGURATION & ORDERING GUIDE (or individual module specifications) for individual module power requirements.

The maximum normal power consumption of the 620-0041 Power Supply is 95VA. A cold start of this power supply will require a maximum of 15 amps for one cycle.

This power supply is selectable for 115 or 230V AC input by the position of a shorting board located under the module's component cover. The 620-0041 is factory set at 115V A C. The 115V AC selection will allow a voltage range of 85 to 132V AC. The 230V AC selection allows a 170 to 2SOVAC range of operation. The frequency of both ranges is 47 to 63 Hz. The PSM offers a front-accessible fuse holder. It is shipped with a 2A Slo-Blo fuse installed for 115V AC operation. The 230V AC 1A Slo-Blo fuse is also shipped with the module. A green LED indicates that SVDC power is present.
