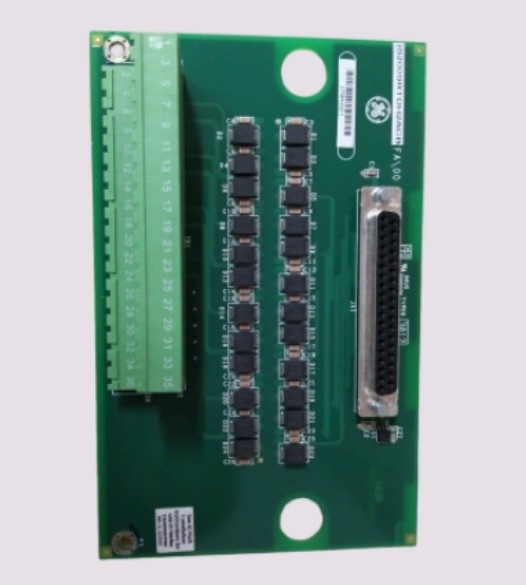

IS200SRTDH2A GE Compact RTD Terminal Board

IS200SRTDH2A GE Compact RTD Terminal Board

Product Details:

Additional Information:

Description:

The IS200SRTDH2A is a compact RTD terminal board manufactured and designed by General Electric. It is a part of the Mark VIe Series control system.

The board stands as a specialized compact RTD terminal board, meticulously designed to be mounted either on a DIN-rail or a flat surface. The board is equipped with eight RTD inputs, providing a means to connect multiple RTDs, which are essential sensors for measuring temperature based on electrical resistance.

The PRTD I/O pack, when connected to the SRTD board, engages in communication with the controller via Ethernet, transmitting vital temperature-related data from the RTD inputs.

This collaboration facilitates temperature monitoring and control within the system. The simplex system support ensures that the communication flow remains unidirectional, maintaining the system's reliability and simplicity.

The SRTD board connects to either the PRTD (Proportional RTD) or VRTD (Voltage RTD) I/O processor, forming an integral part of the system. It interfaces with the processor through high-density Euro-block type terminal blocks that are securely mounted onto the board.
