IS200TRLYH1B GE Relay Output Terminal Board

IS200TRLYH1B GE Relay Output Terminal Board

Product Details:

Additional Information:

Description:

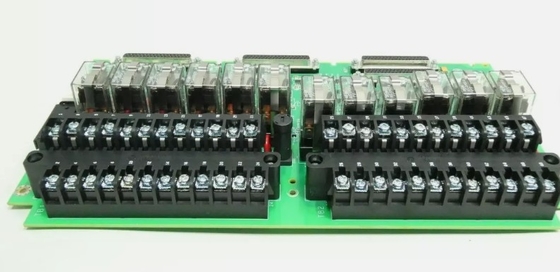

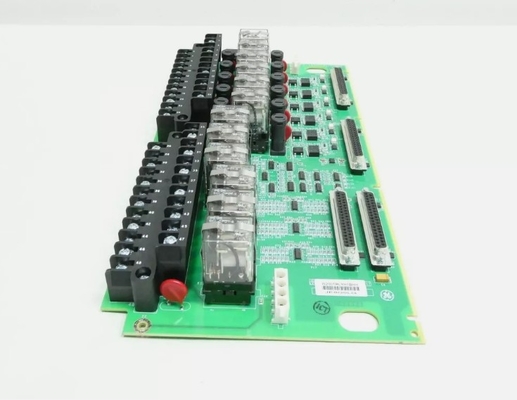

The IS200TRLYH1B contains two (2) large black terminal blocks on its left edge. Each terminal block has twenty-four (24) silver metal terminals.

This adds up to a total of forty-eight (48) terminals. Each terminal has been labeled on the terminal block in white lettering. Four (4) connector ports have been placed on the right border of the IS200TRLYH1B.

Three (3) connector ports are aligned vertically on the edge, with the last one running parallel to the connector port on the bottom. Near the center of the IS200TRLYH1B is a long row of white and black relays with transparent covers shaped like a cube.

These components have been connected to the PCB via black wires. Flanking each relay is a round black transistor. Paired with each transistor is a round red MOV or Metal Oxide Varistor.

Five (5) of these relays are arranged vertically on the top half of the IS200TRLYH1B. Five (5) additional relays have been aligned on the bottom half of the PCB.
